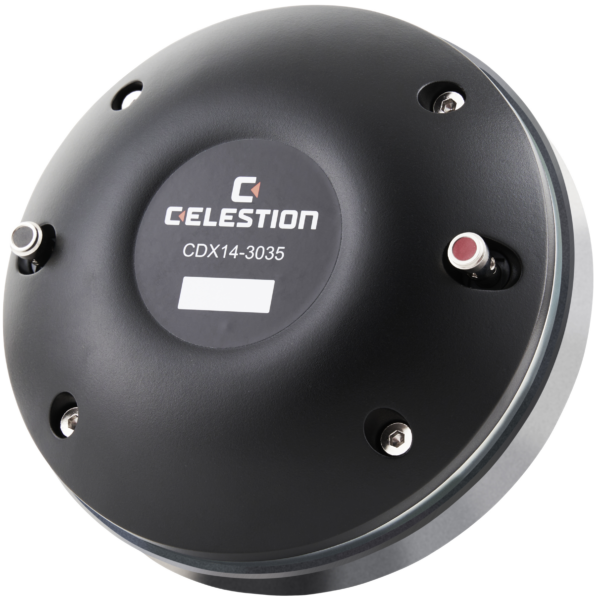

CDX14-3035
1.4in exit, ferrite magnet, single piece titanium diaphragm HF compression driver
- Single piece titanium diaphragm and surround
- Enhanced surround shape for greater linearity
- High temperature polymer clamp ring minimises distortion
Specifications
240W
Continuous power rating
108dB
Sensitivity
3in
Voice coil diameter
Power rating
120W
Continuous power rating
240W
Rated impedance
8Ω
Sensitivity
108dB
Frequency range
500-20,000Hz
Recommended min. crossover (12dB/oct)
800
Magnet type
Ferrite
Voice coil diameter
75mm / 3in
Voice coil material
Edgewound copper clad aluminium
Diaphragm material
Titanium
Surround material
Titanium
Mounting Information
Width
180mm / 7in
Depth
69mm / 2.7in
Fitting
Bolt (4 x M6 holes on a 102mm/4in PCD)
Throat exit
35mm / 1.4in
Unit weight
5.4kg / 11.9lb
Packed Dimensions & Weight
Single pack size W x D x H
240mm x 200mm x 100mm / 9.4in x 8in x 4in
Single pack weight
6kg / 12.2lb

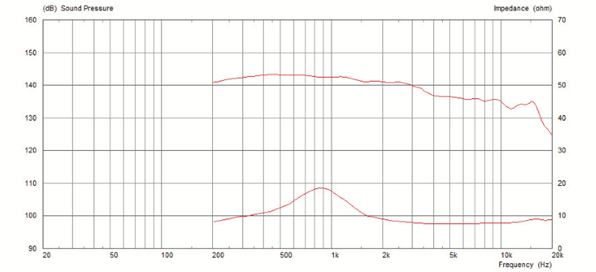

Frequency Response and Impedance Curves
Measured - Plane Wave Tube
Frequency Response and Impedance Curves
Measured - Exponential Horn 90° x 40° radiation pattern
