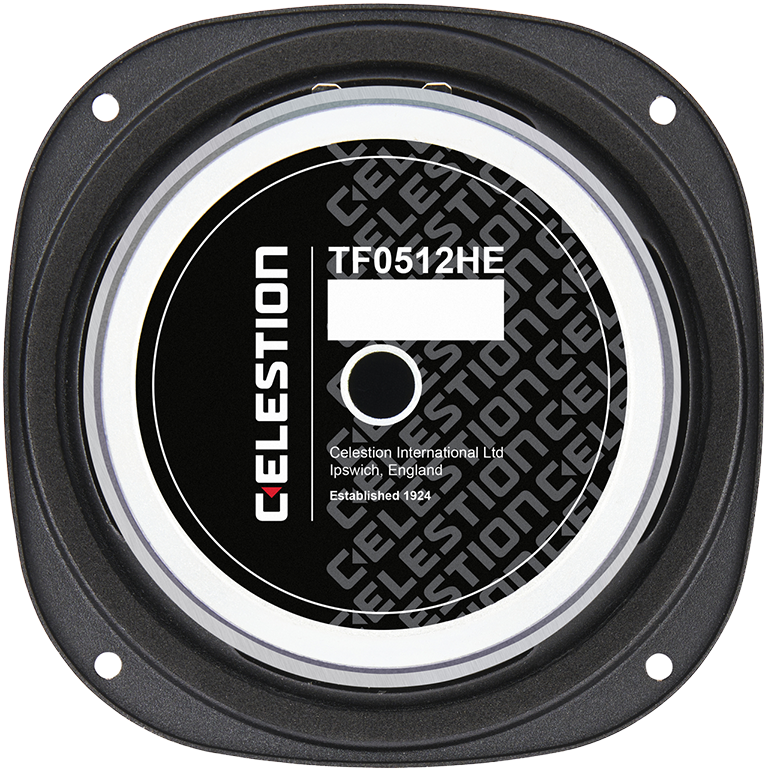

TF0512HE

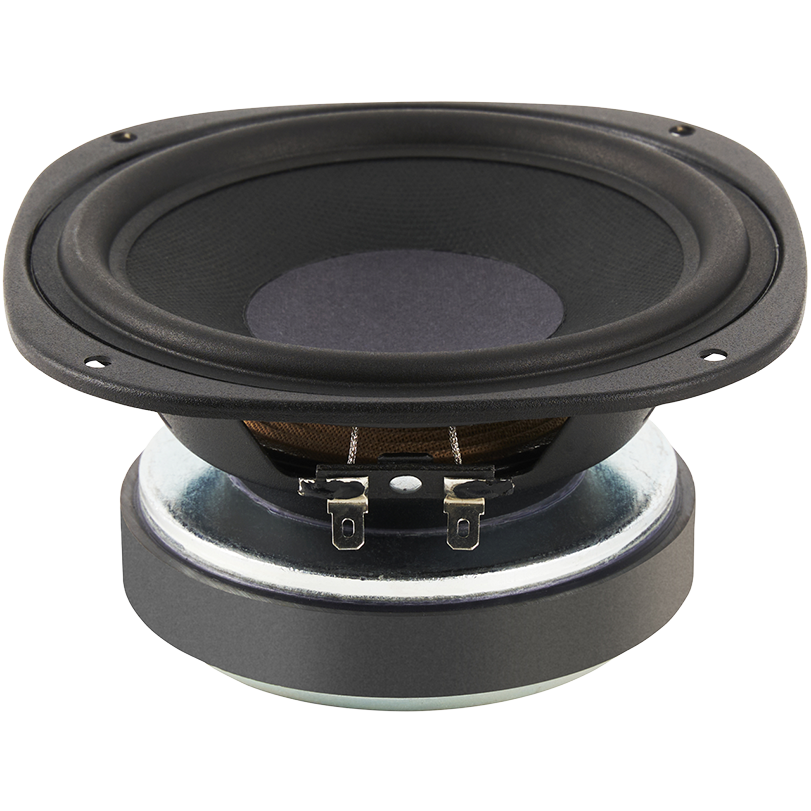

5-inch pressed steel chassis, ferrite magnet bass/mid driver
OEM Only
- Elastomer surround for increased excursion
- Enhanced low frequency performance
- Inverted dustcap for close positioning of phase plug
Specifications
150W
Continuous power rating
89.5dB
Sensitivity
1.25in
Voice coil diameter
Nominal diameter
125mm / 5in
Power rating
75W
Continuous power rating
150W
Rated impedance
8Ω
Sensitivity
89.5dB
Frequency range
55-4,000Hz
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
0.48kg / 17oz
Voice coil diameter
31.75mm / 1.25in
Voice coil material
Copper clad aluminium
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Elastomer
Suspension
Single
Gap height (Hg)
6mm / 0.24in
VC winding height (Hvc)
12.5mm / 0.49in
Parameters
Sd
78.54cm2 / 12.17in2
Fs
84.7Hz
Mms
8.89g / 0.31oz
Qms
9.225
Qes
0.569
Qts
0.536
Re
5.42Ω
Vas
3.46l / 0.12ft3
BI
6.71Tm
Cms
0.39mm/N
Rms
0.51kg/s
Le (at 1kHz)
0.28mH
Xmax
4.75mm / 0.19in
Mounting Information
Overall diameter
151mm / 5.94in
Overall depth
72mm / 2.83in
Cut-out diameter
117mm / 4.6in
Mounting hole dimensions
4.5mm / 0.18in Ø
Number of mounting holes
4
Mounting hole PCD
140mm / 5.5in
Unit weight
1.4kg / 3.1lb
Frequency Response and Impedance Curves
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Parameters: Measured after unit subjected to pre-conditioning signal.
Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
