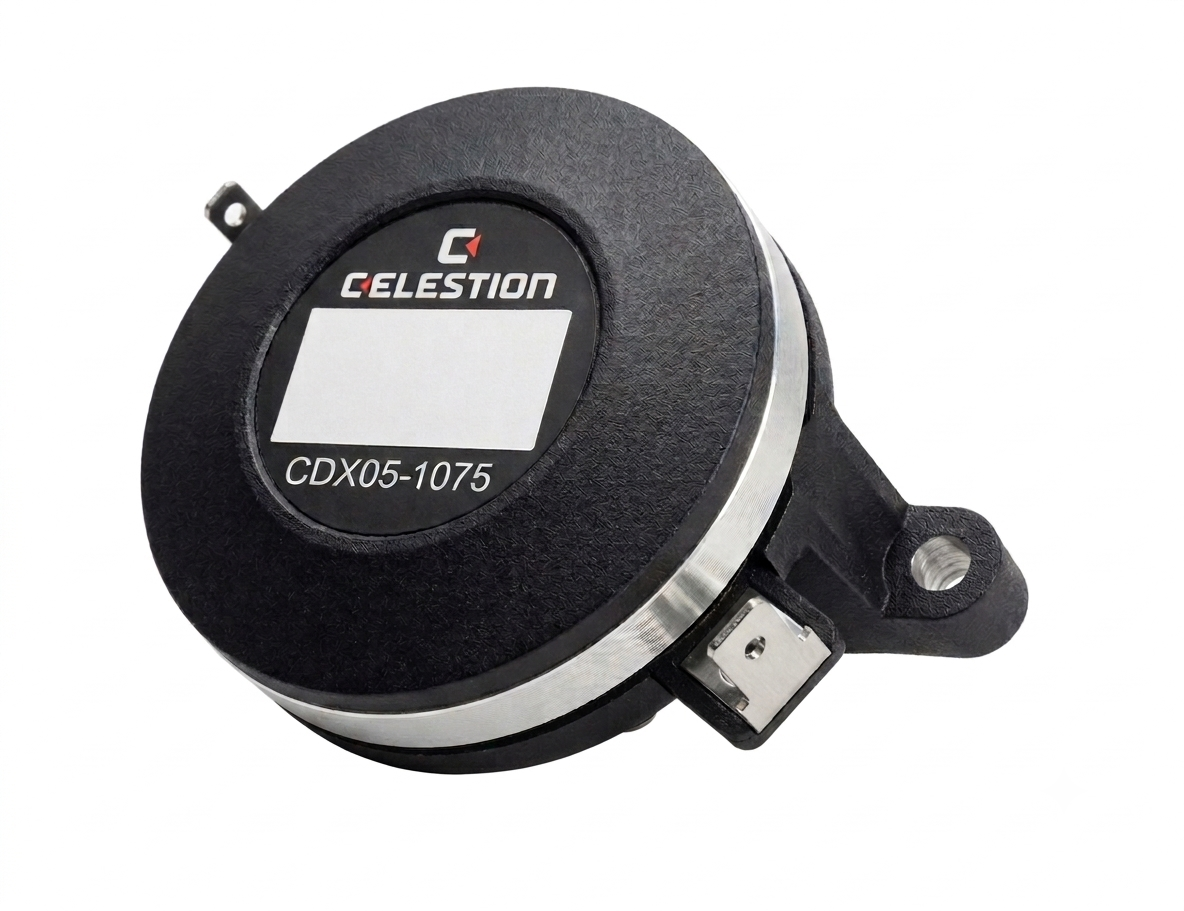

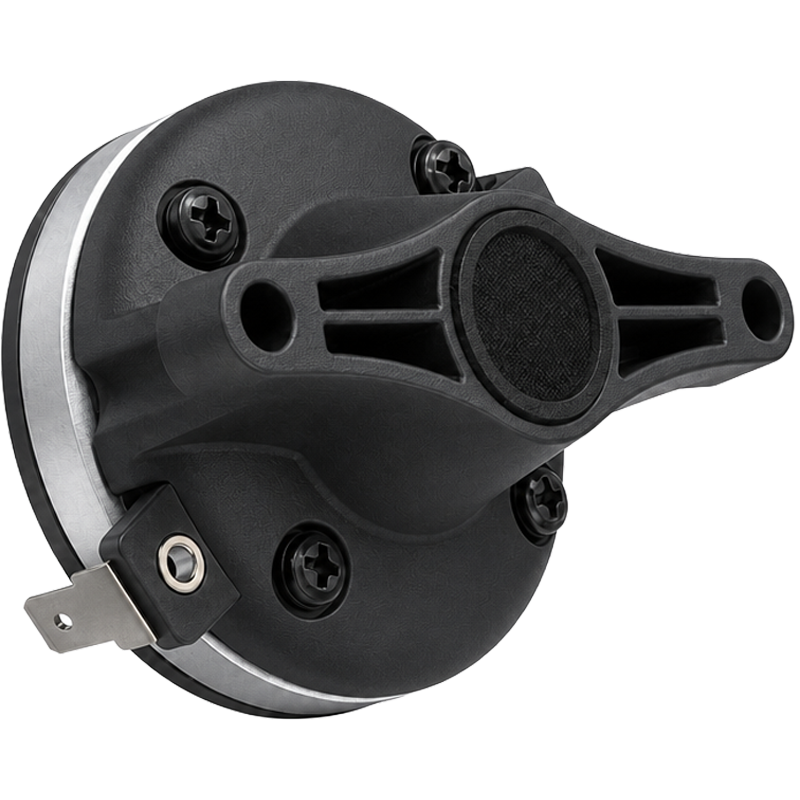

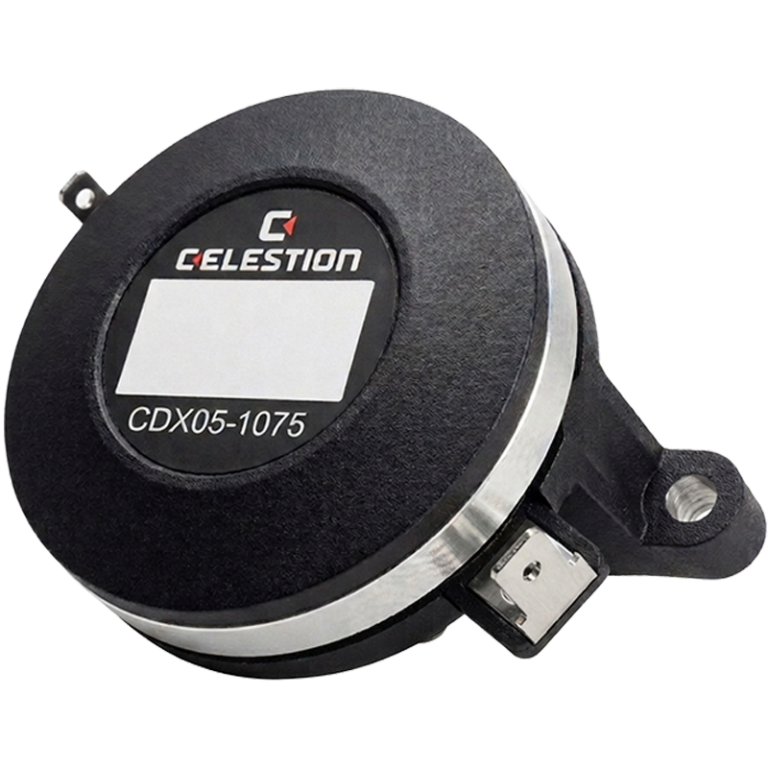

CDX05-1075
0.5-inch exit neodymium magnet compression driver
Specifications
20W
Continuous power rating
109dB
Sensitivity
1in
Voice coil diameter
Power rating
10W
Continuous power rating
20W
Rated impedance
16Ω
Sensitivity
109dB
Frequency range
2,000Hz - 18,000Hz
Recommended min. crossover (12dB/oct)
2,500Hz
Magnet type
Neodymium
Voice coil diameter
25mm / 1in
Voice coil material
Copper clad aluminium
Diaphragm material
Polyimide
Surround material
Polyimide
Mounting Information
Width
60mm / 2.4in
Depth
35mm / 1.38in
Fitting
Bolt (2xM4 holes on 53mm/2.1in PCD)
Throat exit
13mm / 0.5in
Unit weight
0.16kg / 0.35lb
Packed Dimensions & Weight
Multi pack qty
24
Multi pack size W x D x H
300mm x 211mm x 160mm / 11.8in x 8.3in x 6.3in
Multi pack weight
6kg / 13.2lb
Frequency Response and Impedance Curves
Measured - Plane Wave Tube
Measured - Exponential Horn 90° x 40° radiation pattern
