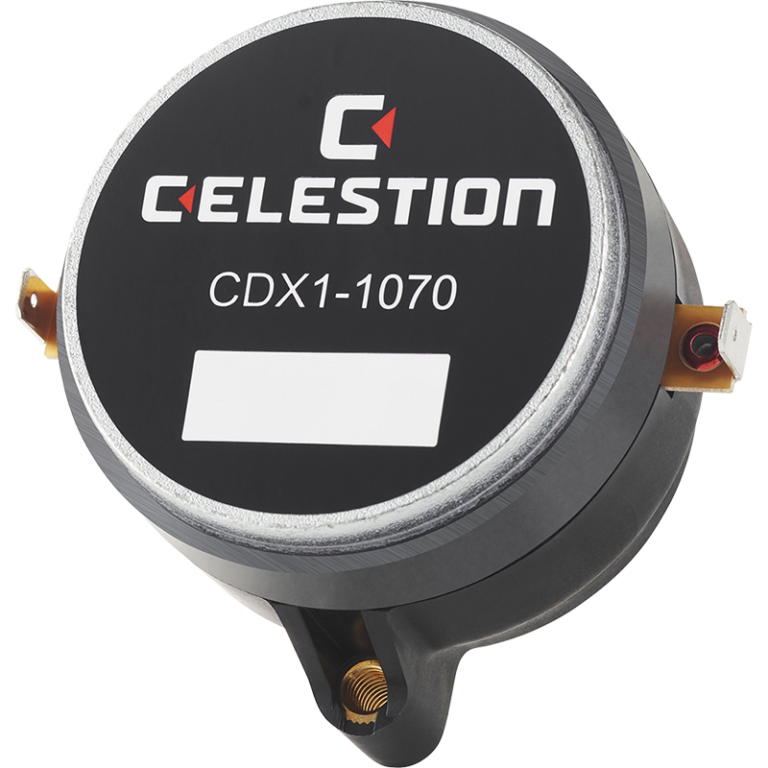

CDX1-1070
1-inch exit ferrite magnet compression driver
- Single piece PETP diaphragm and surround
- 2,200 Hz recommended min. crossover freq (12dB/oct)
Specifications
24W
Continuous power rating
106dB
Sensitivity
1in
Voice coil diameter
Power rating
12W
Continuous power rating
24W
Rated impedance
8Ω
Sensitivity
106dB
Frequency range
1500-20,000Hz
Recommended min. crossover (12dB/oct)
2200Hz
Magnet type
Ferrite
Voice coil diameter
25mm / 1in
Voice coil material
Copper clad aluminium
Diaphragm material
PETP film
Surround material
PETP film

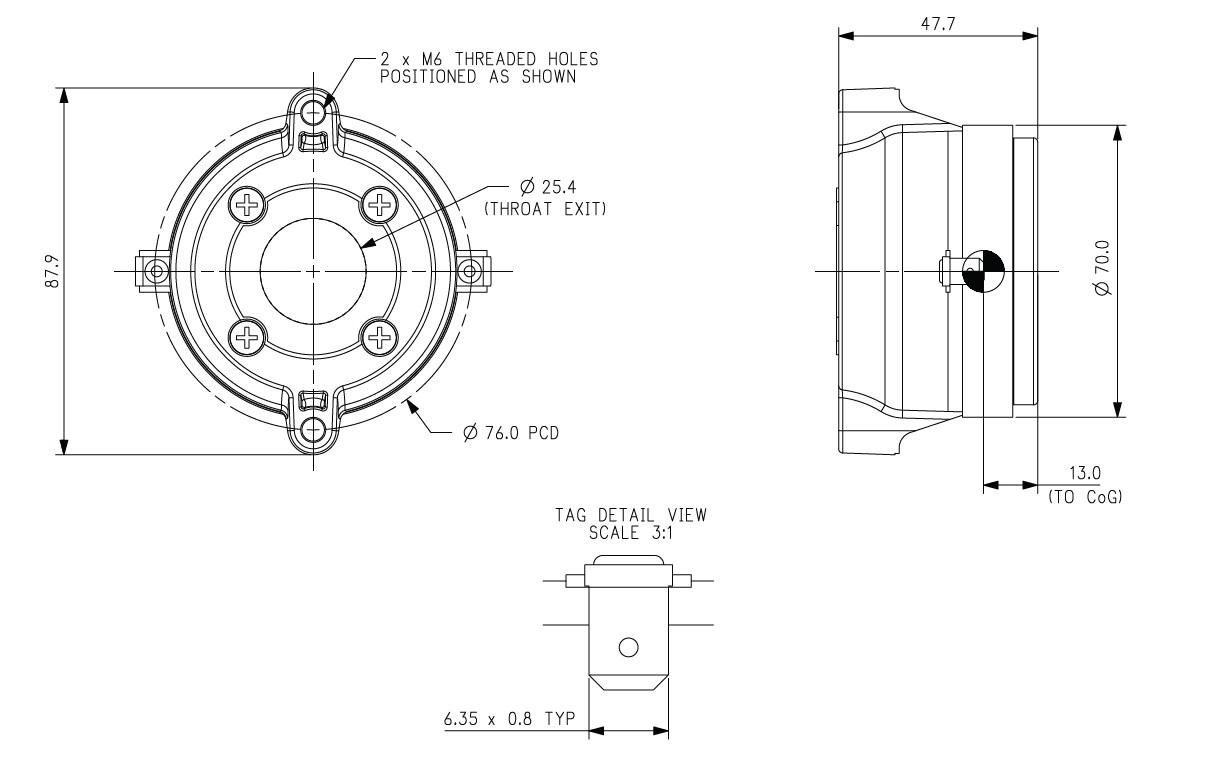

Mounting Information
Width
70mm / 2.8in
Depth
50mm / 2in
Fitting
Bolt (2 x M6 holes on 76mm/3in PCD)
Throat exit
25mm / 1in
Unit weight
0.7kg / 1.5lb
Packed Dimensions & Weight
Single pack size W x D x H
98mm x 98mm x 77mm / 3.8in x 3.8in x 3.0in
Single pack weight
1.0kg / 2.2lb
Horns
T5359
H1-9040P Horn
T5134
H1-7050 'No Bell' Horn
Frequency Response and Impedance Curves
Measured - Plane Wave Tube
Measured - Exponential Horn 90° x 40° radiation pattern
Power rating: Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment.
