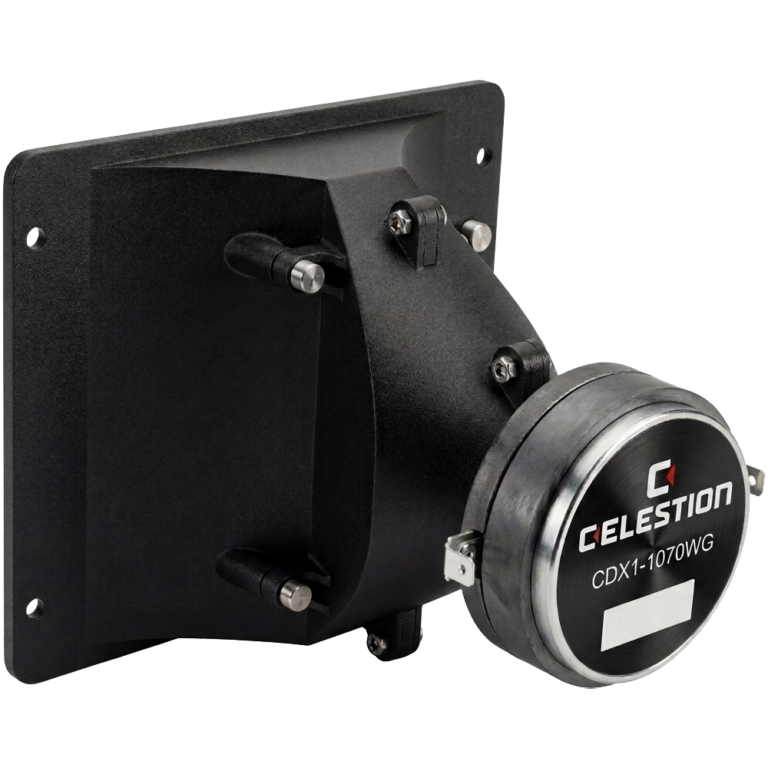

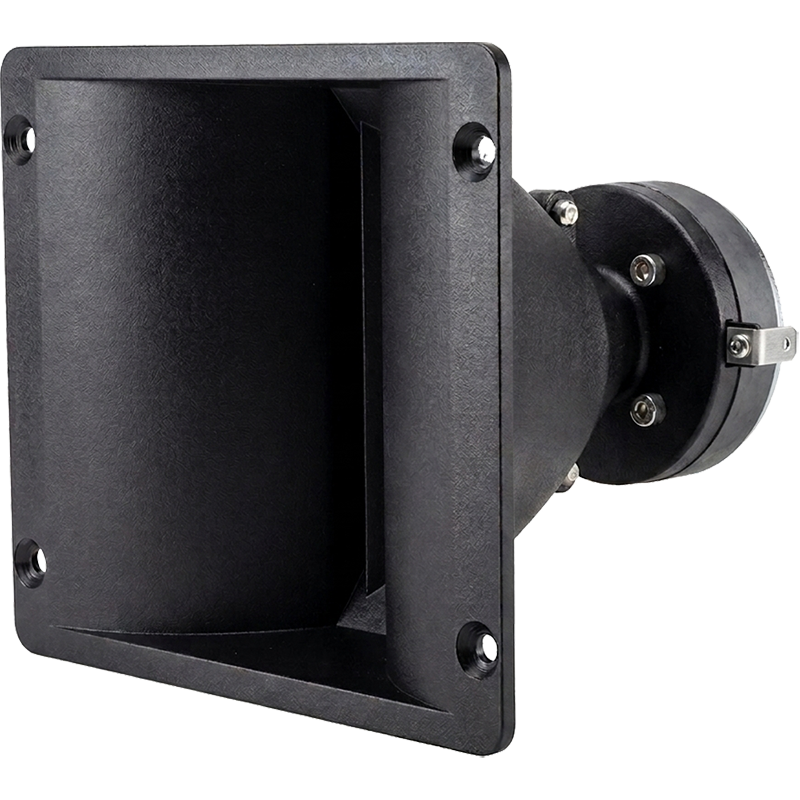

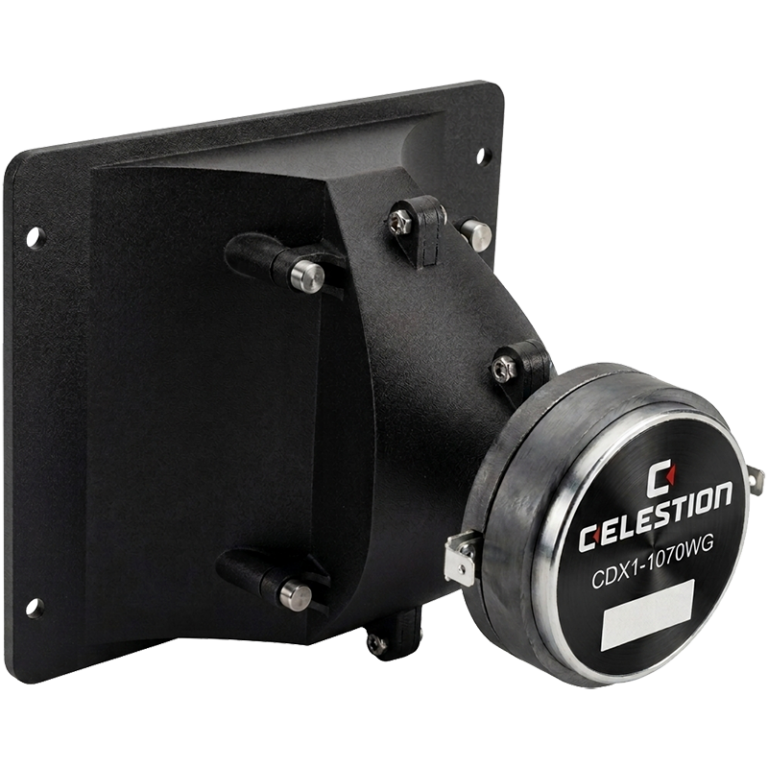

CDX1-1070WG
1-inch exit ferrite magnet compression driver with horn
- High quality HF compression driver with integrated horn
- 100° x 25° radiation pattern
- Single piece PETP diaphragm and surround
- 3000 Hz recommended min. crossover freq (12dB/oct)
Specifications
24W
Continuous power rating
105dB
Sensitivity
1in
Voice coil diameter
Power rating
12W
Continuous power rating
24W
Rated impedance
16Ω
Sensitivity
105dB
Frequency range
2500Hz - 18,000Hz
Recommended min. crossover (12dB/oct)
3000Hz
Nominal coverage angle
100° horizontal coverage
Magnet type
Ferrite
Cut off frequency
2000Hz
Voice coil diameter
25mm / 1in
Voice coil material
Edgewound copper clad aluminium
Diaphragm material
PETP film
Surround material
PETP film
Horn material
ABS
Mounting Information
Height
136mm / 5.4in
Width
151mm / 6in
Depth
142mm / 5.6in
Baffle cut-out
112 x 125mm / 4.4 x 4.9in
Number of mounting holes
4
Frequency Response and Impedance Curves

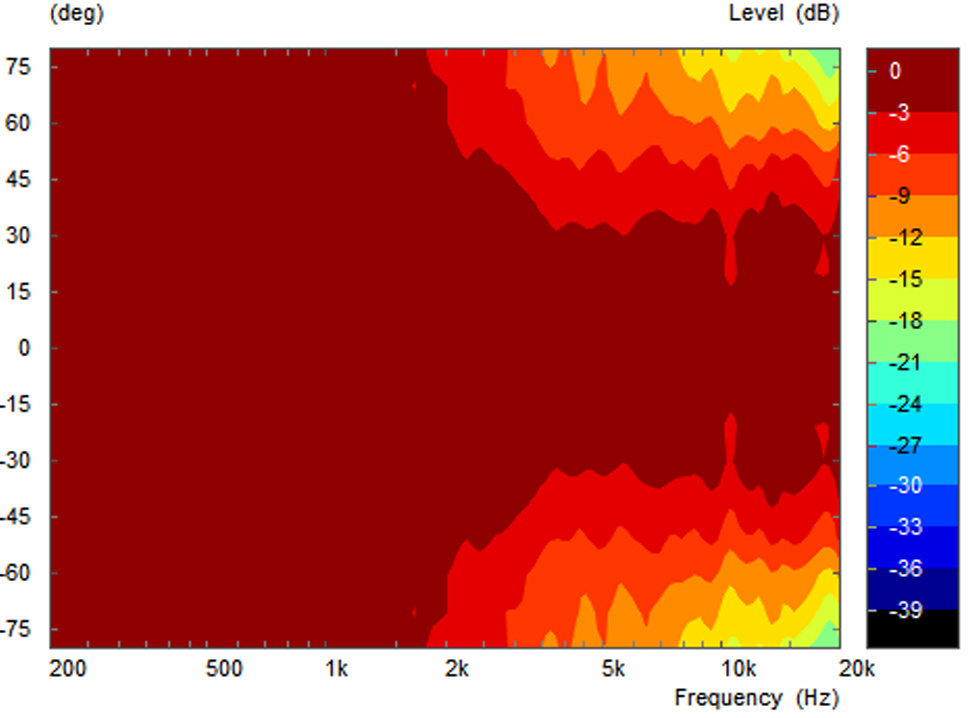

Horizontal Contour

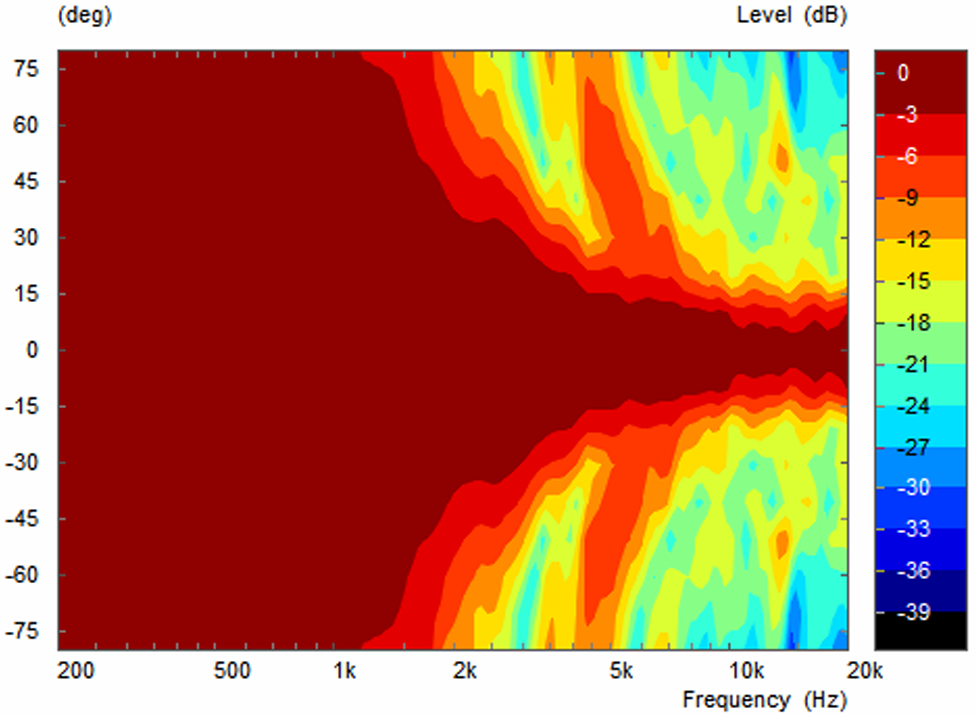

Vertical Contour
