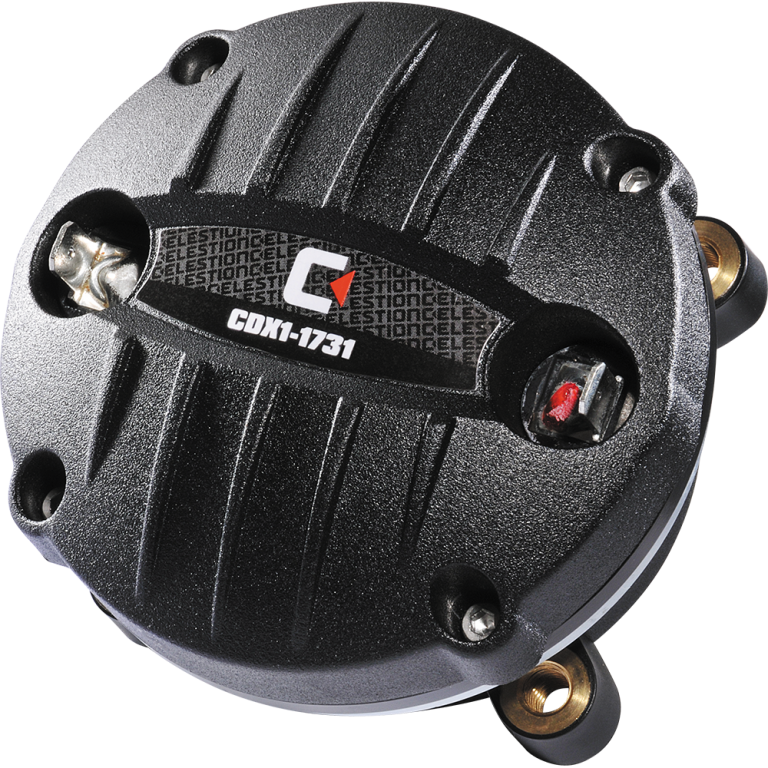

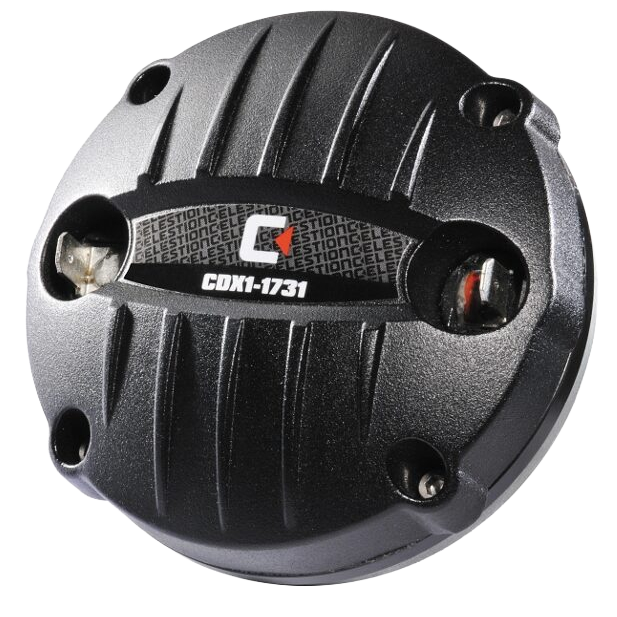

CDX1-1731
1-inch exit neodymium magnet compression driver
- 2,200Hz recommended min. crossover freq (12dB/oct)
- Single piece PETP film diaphragm and surround
- Sound Castle diaphragm assembly
- Screw fitting
Specifications
80W
Continuous power rating
110dB
Sensitivity
1.75in
Voice coil diameter
Power rating
40W
Continuous power rating
80W
Rated impedance
8Ω
Sensitivity
110dB
Frequency range
1200-20,000Hz
Recommended min. crossover (12dB/oct)
2200Hz
Magnet type
Neodymium
Voice coil diameter
44mm / 1.75in
Voice coil material
Edgewound copper clad aluminium
Diaphragm material
PETP film
Surround material
PETP film
Additional impedances
16Ω
Mounting Information
Width
88.5mm / 3.48in
Depth
55mm / 2.2in

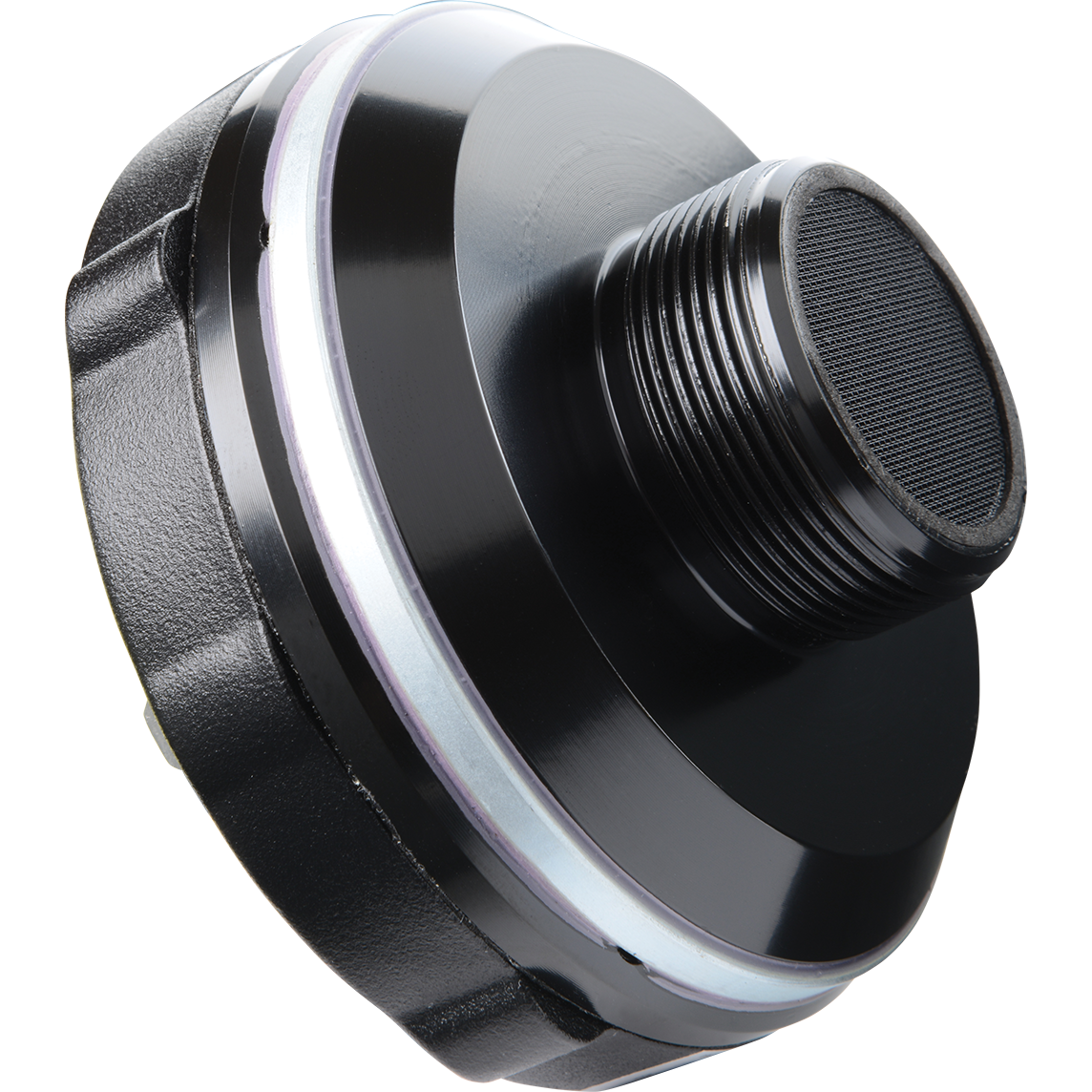

Fitting
Screw (35mm/1.38in diameter)
Bolt version
CDX1-1730
Throat exit
25mm / 1in
Unit weight
0.65kg / 1.4lb
Packed Dimensions & Weight
Single pack size W x D x H
90mm x 90mm x 60mm / 3.5in x 3.5in x 2.4in
Single pack weight
0.75kg / 1.7lb
Multi pack qty
16
Multi pack size W x D x H
500mm x 485mm x 110mm / 19.7in x 19.1in x 4.3in
Multi pack weight
11.2kg / 24.9lb
Horns and repair kits
T5510
Diaphragm repair kit (8Ω)
T5523
Diaphragm repair kit (16Ω)
T5359
H1-9040P Horn
T5134
H1-7050 'No Bell' Horn
Frequency Response and Impedance Curves
Measured - Plane Wave Tube
Measured - Exponential Horn 90° x 40° radiation pattern
Power rating: Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment.
