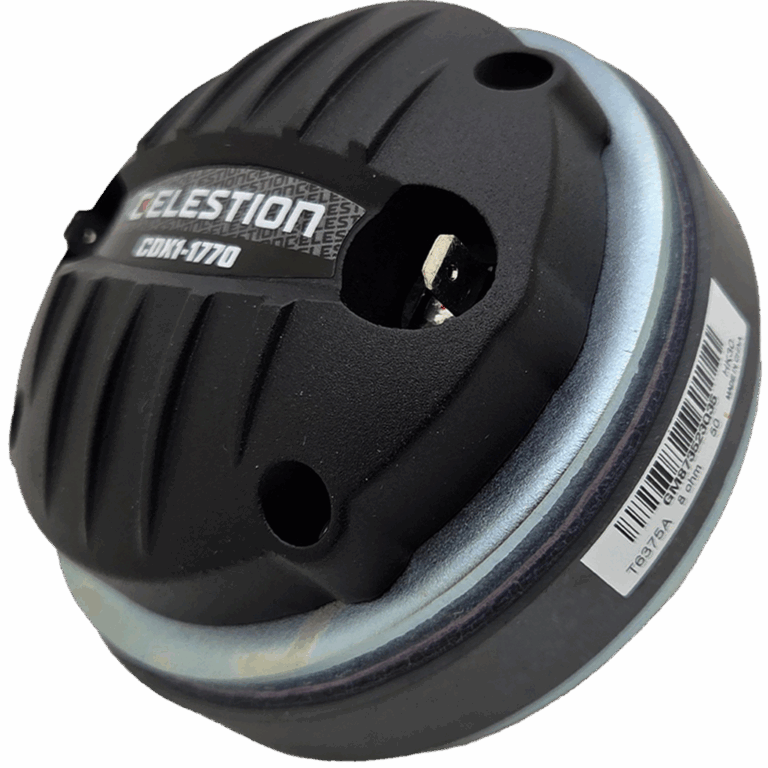

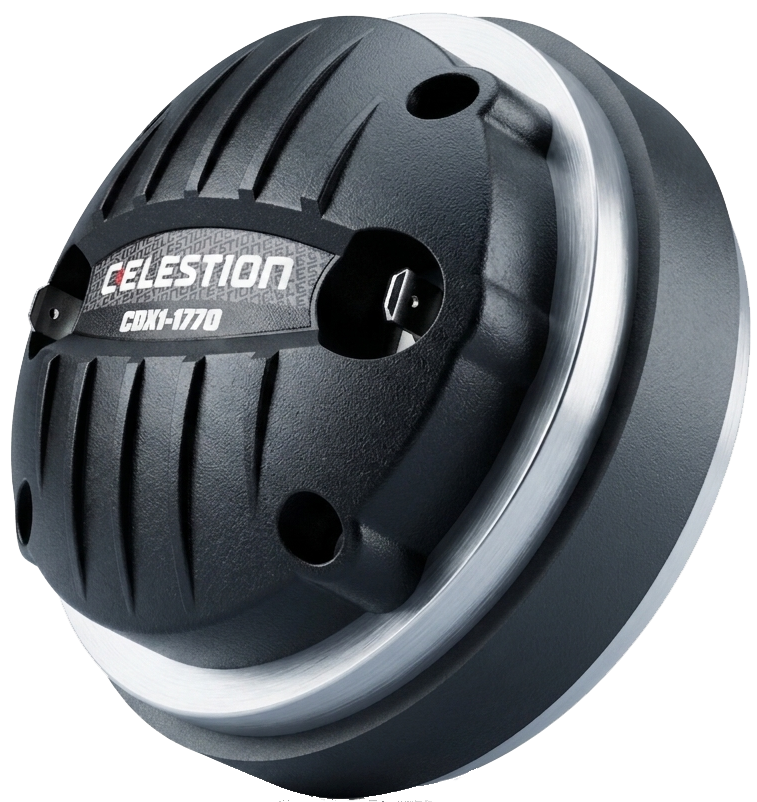

CDX1-1770
1-inch exit ferrite magnet compression driver
OEM Only
- Single piece PETP diaphragm and surround
- Next generation Sound Castle soft clamping diaphragm assembly
- 2,000Hz recommended min. crossover freq (12dB/oct)
Specifications
80W
Continuous power rating
108dB
Sensitivity
1.75in
Voice coil diameter
Power rating
40W
Continuous power rating
80W
Rated impedance
8Ω
Sensitivity
108dB
Frequency range
1400Hz-20kHz
Recommended min. crossover (12dB/oct)
2200Hz
Magnet type
Ferrite
Voice coil diameter
44mm / 1.75in
Voice coil material
Copper clad aluminium
Diaphragm material
PETP film
Surround material
PETP film
Mounting Information
Width
100mm / 4in
Depth
55.6mm / 3.94in

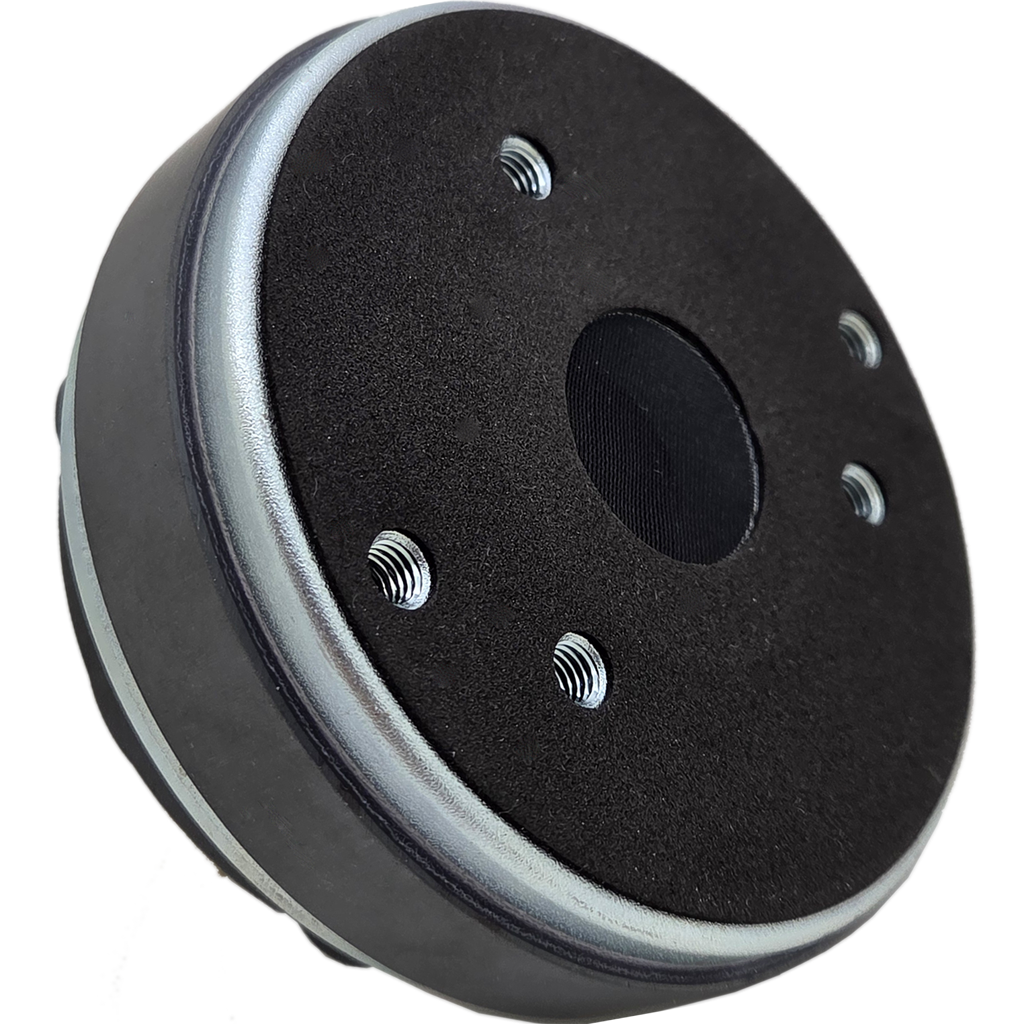

Fitting
Bolt (2/3 M6 holes on 76/57mm, 3 .0/2 .24in PCD)
Throat exit
25mm / 1in
Unit weight
1.36kg / 3lb
Packed Dimensions & Weight
Multi pack qty
16
Multi pack size W x D x H
495mm x 495mm x 90mm / 19.5in x 19.5in x 3.5in
Multi pack weight
25.5kg / 56lb
Frequency and Response and Impedance Curves

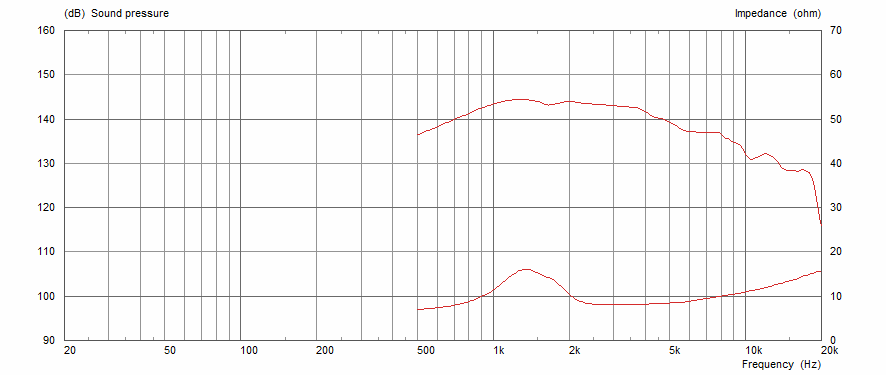

Measured - Plane Wave Tube

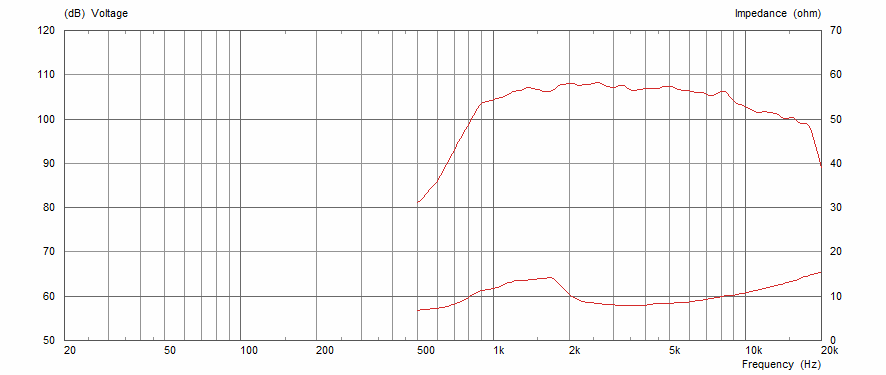

Measured - Exponential Horn 90° x 40° radiation pattern
