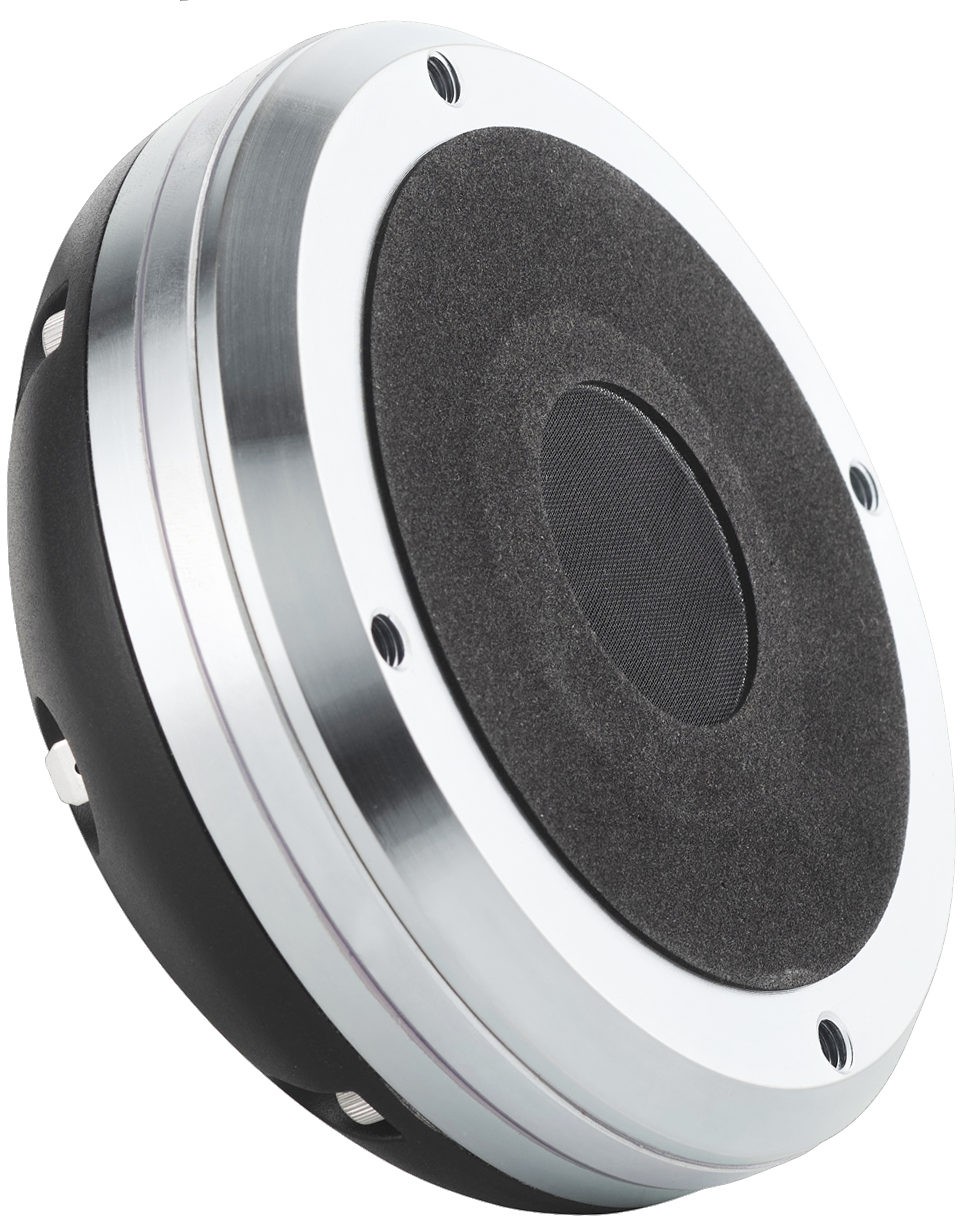

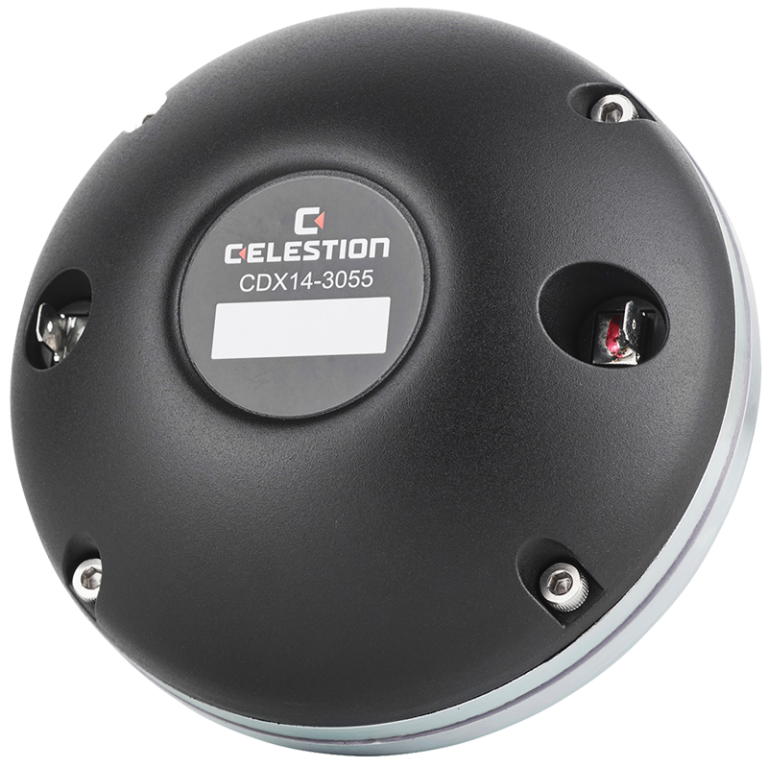

CDX14-3055
1.4-inch exit neodymium magnet compression driver
- Maximum modal suppression phase plug
- Deep-drawn titanium diaphragm with polyimide surround
- Sound Castle soft clamping diaphragm assembly
Specifications
240W
Continuous power rating
108dB
Sensitivity
3in
Voice coil diameter
Power rating
120W
Continuous power rating
240W
Rated impedance
8Ω
Sensitivity
108dB
Frequency range
500-20,000Hz
Recommended min. crossover (12dB/oct)
800Hz
Magnet type
Neodymium
Voice coil diameter
75mm / 3in
Voice coil material
Edgewound copper clad aluminium
Diaphragm material
Titanium
Surround material
Polyimide
Mounting Information
Width
120mm / 4.7in
Depth
55mm / 2.2in
Fitting
Bolt (4 x M6 holes on 102mm/4in PCD)
Throat exit
35mm / 1.4in
Unit weight
1.7kg / 3.7lb
Packed Dimensions & Weight
Single pack size W x D x H
170mm x 140mm x 75mm / 6.7in x 5.5in x 3in
Single pack weight
2kg / 4.4lb
Frequency Response and Impedance Curves
Measured - Plane Wave Tube
Measured - Exponential Horn 90° x 40° radiation pattern
Power rating: Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment.
