CF0617M
Inverted dustcap for close positioning of phase plug
High temperature environmentally robust foam surround
Copper sleeved pole reduces HF inductive rise
Chassis design allows for fixing of rear cover
Specifications
200W
Nominal Power Rating
96dB
Sensitivity
1.75in
Voice coil diameter
Nominal Diameter
165mm/6.5in
Nominal Power Rating
200W
Continuous Power Rating
400W
Sensitivity
96dB
Rated Impedance
8Ω
Frequency Range
300Hz-7000Hz
Voice coil diameter (mm)
45mm
Voice coil diameter (in)
1.75in
Chassis Type
Cast Aluminium
Magnet Type
Ferrite
Magnet Weight
0.6kg/22oz
Voice coil material
Edgewound copper clad aluminium
Former Material
Glass fibre
Cone material
Kevlar loaded paper
Surround Material
Temperature resistant foam
Suspension
Single
Xmax
1.2mm/0.05in
Gap Depth
6mm/0.24in
Voice coil winding width
8.4mm/0.33in
Small Signal Parameters
Sd
153.94cm2/23.86in2
Fs
116.6Hz
Mms
11.59g/0.41oz
Qms
6.93
Qes
0.481
Qts
0.451
Re
5.3Ω
Vas
5.39L/0.19ft3
BI
9.68Tm
Cms
0.16mm/N
Rms
1.23kg/s
Le (at 1kHz)
1.73mH

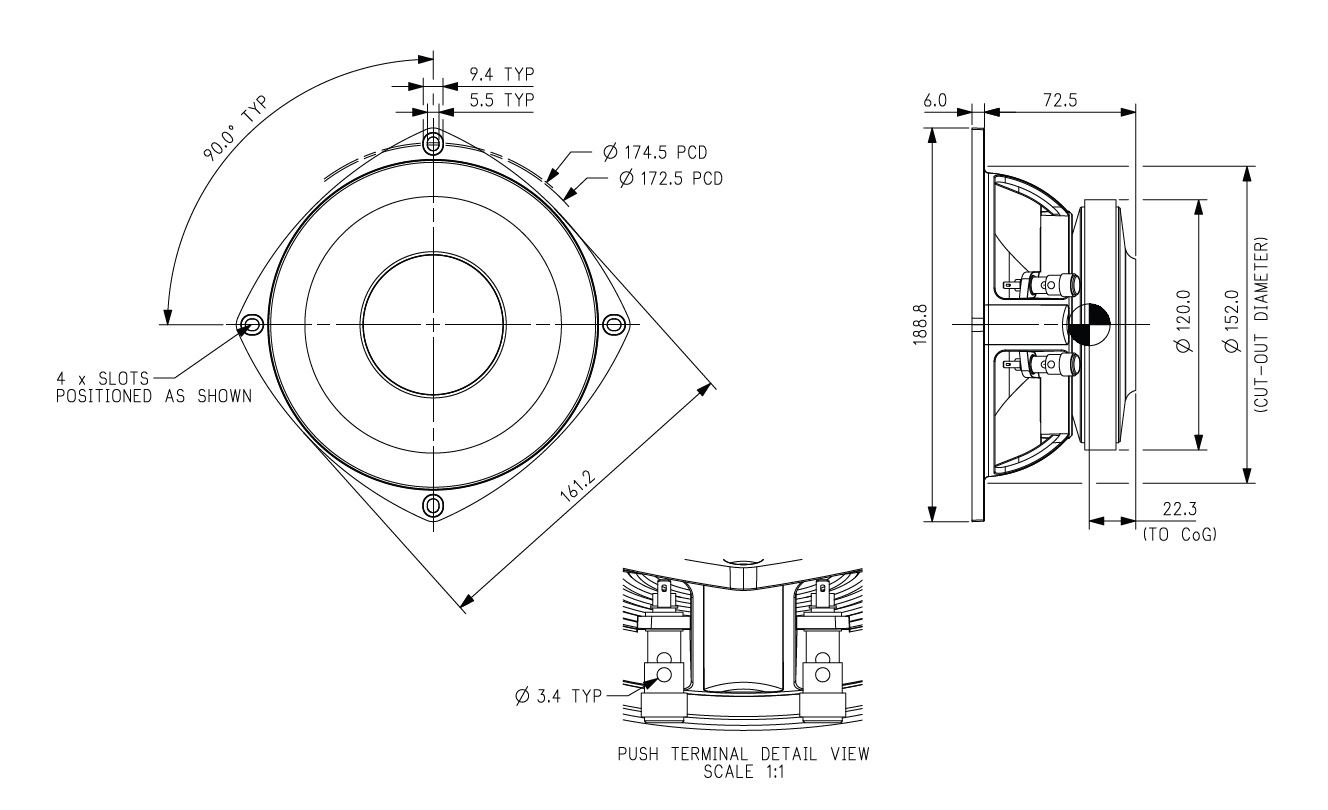

Mounting Information
Mounting slot dimensions
7.5mm x 5.5mm/0.3in x 0.22in Ø
Mounting slot PCD
173mm-175mm/6.81in-6.89in
Number of mounting slots
4
Overall Depth
78.5mm/3.1in
Overall Diameter (mm)
189mm (max)
Overall Diameter (in)
7.44in (max)
Cut-out diameter
150mm/5.9in
Unit Weight
1.9kg/4.2lb
Packed Dimensions & Weight
Single pack size W x D x H
190mm x 190mm x 110mm/7.5in x 7.5in x 4.3in
Single pack weight
2.5kg/5.5lb
Multi Pack Qty
8
Multi pack size W x D x H
345mm x 345mm x 190mm/13.6in x 12.4in x 7.5in
Multi pack weight
20kg/44lb
Frequency Response and Impedance Curves
Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis
Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous Power Rating is defined as 3dB greater than the AES rating.
Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.
Xmax is derived from: (voice coil winding width-gap depth)/2.
Small Signal Parameters are measured after unit subjected to pre-conditioning signal.
