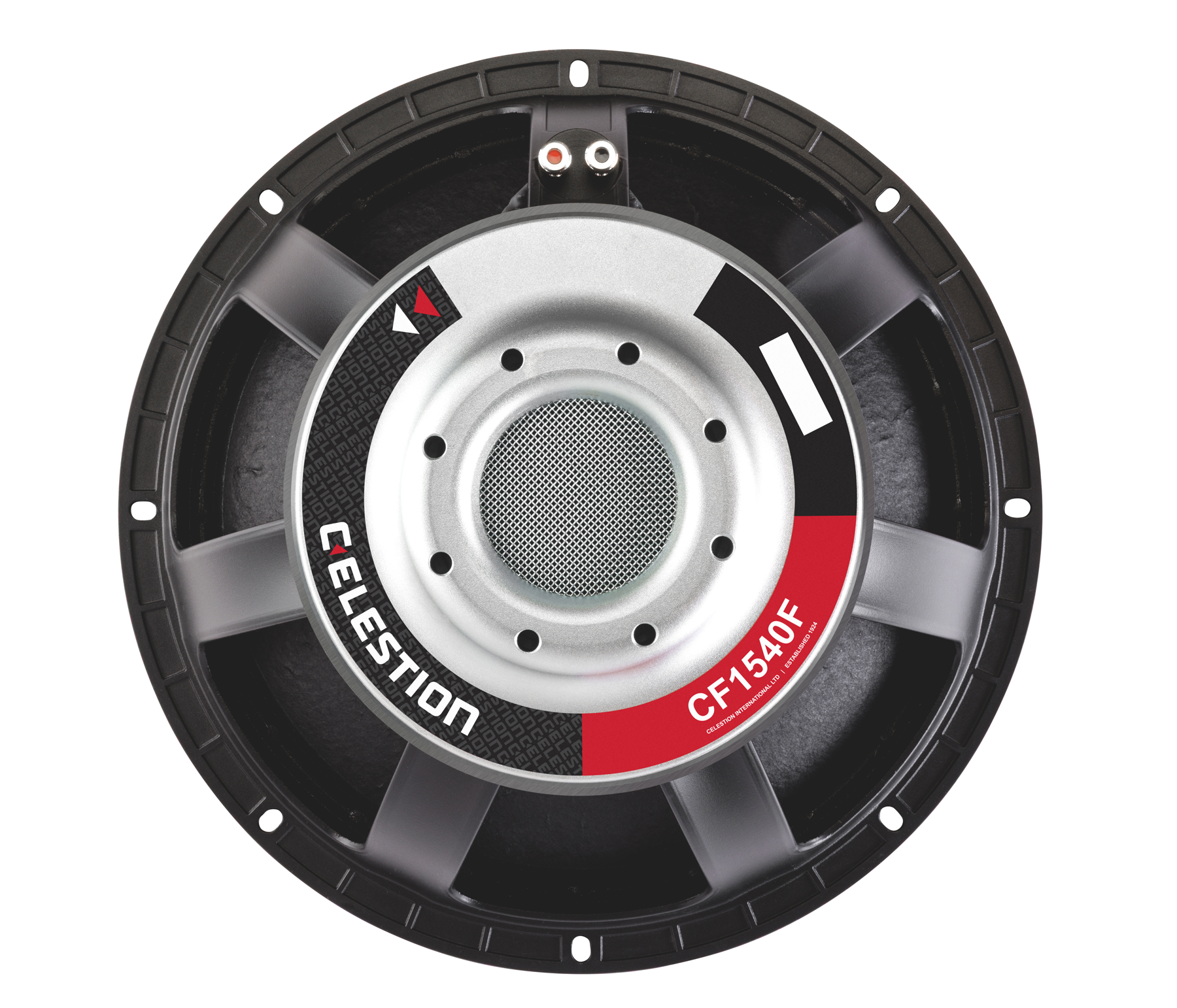

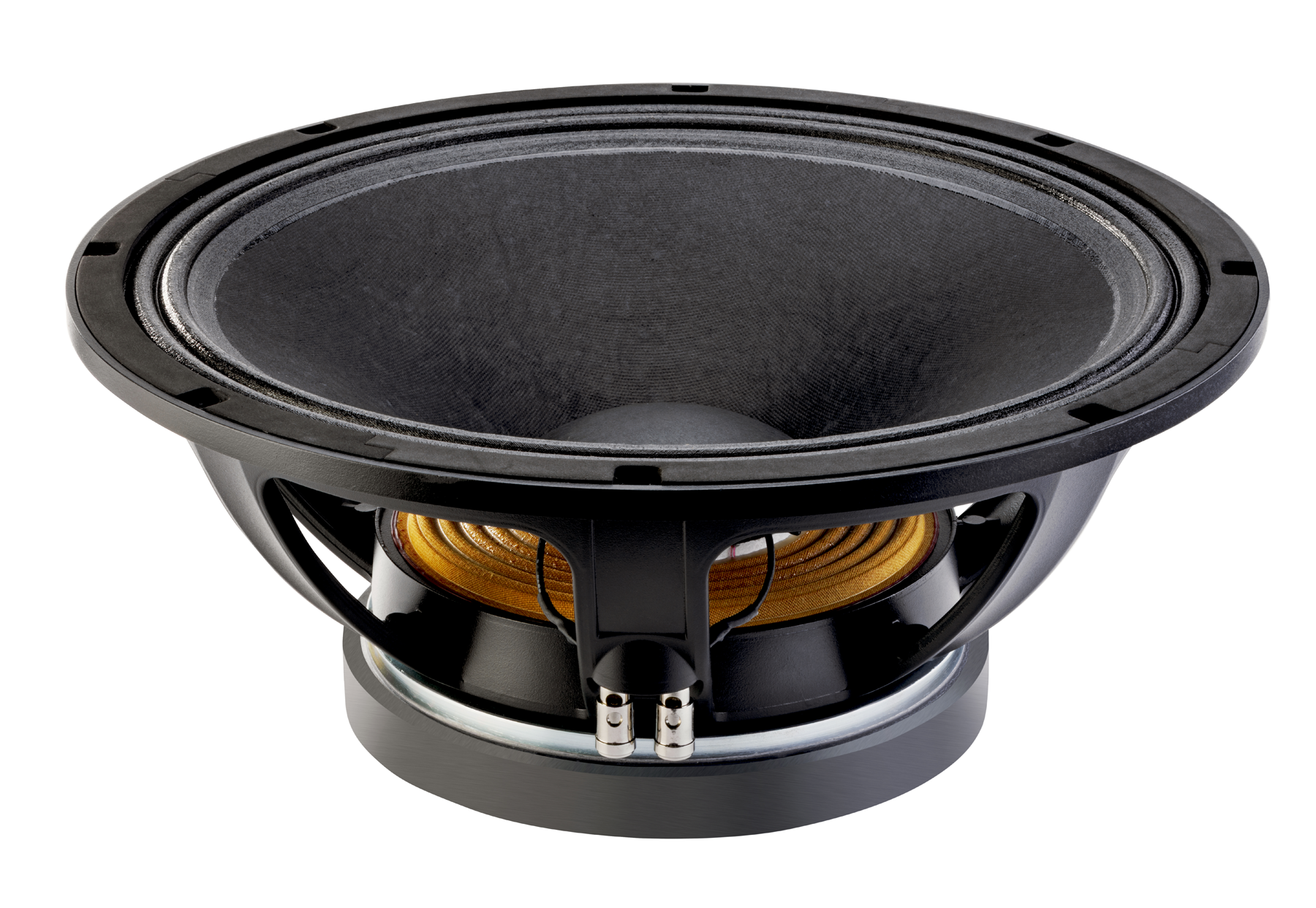

CF1540F
15-inch, cast aluminium chassis, ferrite magnet LF driver
Glass loaded paper cone with weather-resistant impregnation
Airflow vented magnet assembly for dynamic heat dispersion
Specifications
15in
Diameter
1200W
Continuous power rating
8Ω
Rated impedance
97dB
Sensitivity
Nominal diameter
381mm / 15in
Power rating
600W
Continuous power rating
1200W
Rated impedance
8Ω
Sensitivity
97dB
Frequency range
35-2,000Hz
Chassis type
Cast aluminium
Magnet type
Ferrite
Magnet weight
3.1kg / 110oz
Voice coil diameter
100mm / 4in
Voice coil material
Round copper
Former material
Glass Fibre
Cone material
Glass loaded cellulose
Surround material
Cloth-sealed
Suspension
Single
Gap height (Hg)
9.5mm / 0.37in
VC winding height (Hvc)
22mm / 0.87in
Parameters
Sd
855.3cm2 / 132.6in2
Fs
29.1Hz
Mms
128.9g/4.54oz
Qms
6.531
Qes
0.243
Qts
0.235
Re
5.53Ω
Vas
227.867l/8.05ft3
BI
23.15Tm
Cms
0.232mm/N
Rms
3.61kg/s
Le (at 1kHz)
1.74mH
Xmax
8.6mm / 0.34in
Mounting Information
Overall diameter
392.7mm / 15.5in
Overall depth
181.8mm / 7.16in
Cut-out diameter
354.5mm / 13.96in
Mounting hole dimensions
10x7mm / 0.39x0.27in
Number of mounting holes
8
Mounting hole PCD
367-374mm / 14.45-14.72in
Unit weight
9.62kg / 21.2lb

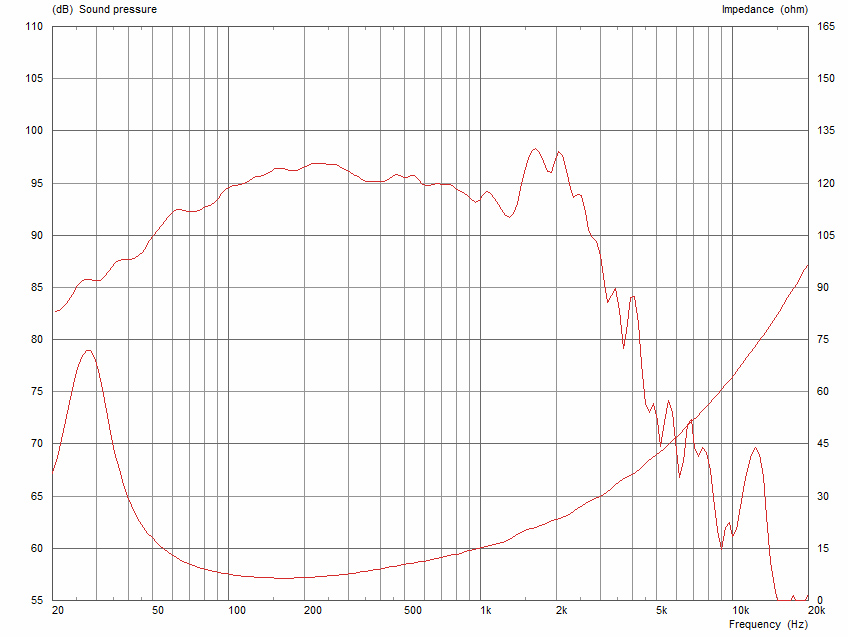

Frequency Response and Impedance Curves
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Parameters: Measured after unit subjected to pre-conditioning signal.
Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
