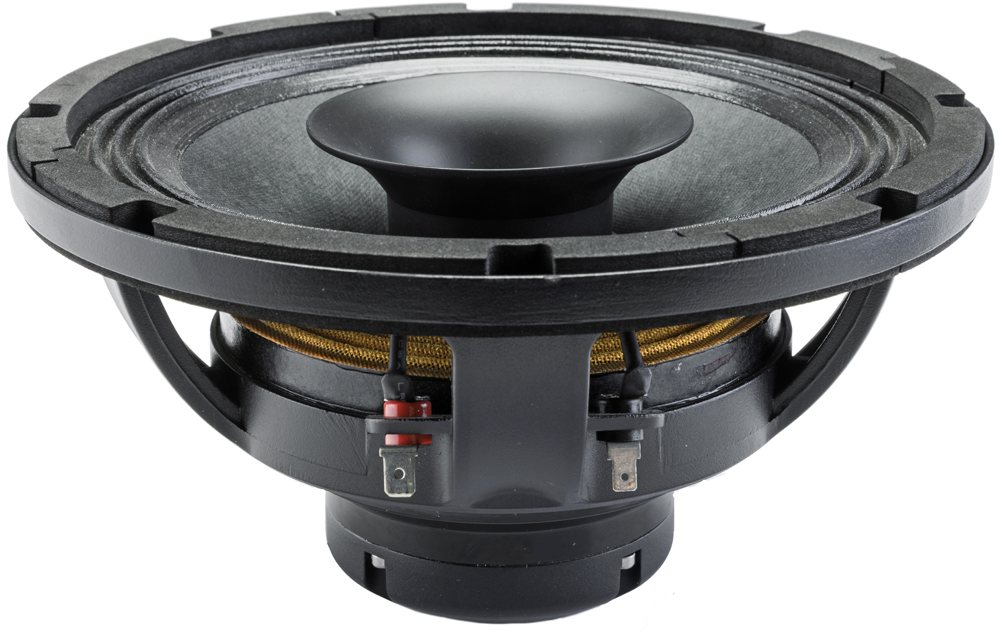

CNX0820

8-inch cast aluminium chassis, neodymium magnet coaxial driver

Neodymium magnet assembly acts as common motor for both LF and HF
Polyimide HF diaphragm: field repairable
Twin demodulation rings to reduce harmonic and intermodulation distortion
Integrated 50° dispersion constant directivity horn

Specifications

500W

Continuous power rating

95dB

Sensitivity

2in

Voice coil diameter LF

1.75in

Voice coil diameter HF

Nominal diameter

200mm / 8in

Power rating

250W

Continuous power rating

500W

Rated impedance

8Ω

Sensitivity

95dB

Frequency range

80Hz-5,000Hz

Chassis type

Cast aluminium

Magnet type

Neodymium

Voice coil diameter

50mm / 2in

Voice coil material

Edgewound copper clad aluminium

Former material

Polyimide

Cone material

Kevlar loaded paper

Surround material

Triple roll, cloth sealed

Suspension

Single

Gap height (H_g)

8mm / 0.31in

VC winding height (H_vc)

16mm / 0.63in

Parameters

226.98cm² / 35.18in²

94.6Hz

Mms

20.9g/0.74oz

Qms

3.293

Qes

0.448

Qts

0.395

5.10Ω

Vas

9.89l / 0.35 ft³

12.02Tm

Cms

0.14 mm/N

Rms

3.77kg/s

Le (at 1kHz)

0.46mH

Xmax

6mm / 0.24in

Mounting Information

Overall diameter

215mm / 8.5in

Overall depth

115mm / 4.53in

Cut-out diameter

187mm / 7.4in

Mounting hole dimensions

7x5.6mm / 0.28x0.22in

Number of mounting holes

Mounting hole PCD

197-200mm / 7.8-7.9in

Unit weight

2.5kg / 5.5lb

Additional HF Specifications

Power rating

50W

Continuous power rating

100W

Rated impedance

8Ω

Sensitivity

107dB

Frequency range

1,200Hz-20,000Hz

Recommended min. crossover 12dB/oct

2,000Hz

Voice coil diameter

44mm / 1.75in

Magnet type

Neodymium, common motor

Diaphragm material

Polyimide

Surround material

Polyimide

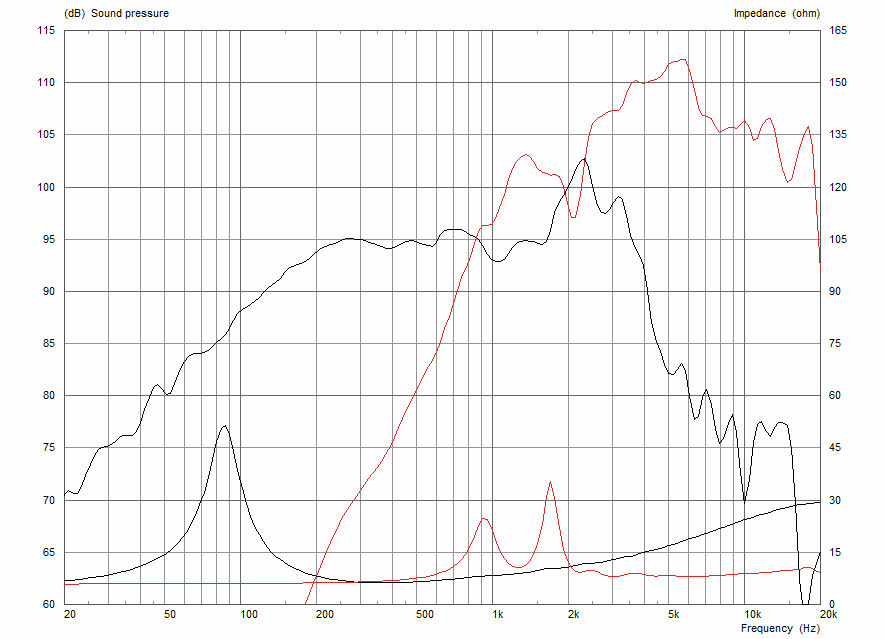

Frequency Response and Impedance Curves

Black: LF response curve | Red: HF response curve

Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

HF power rating: Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

Continuous power rating: Defined as 3dB greater than the AES rating.

Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.

Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
