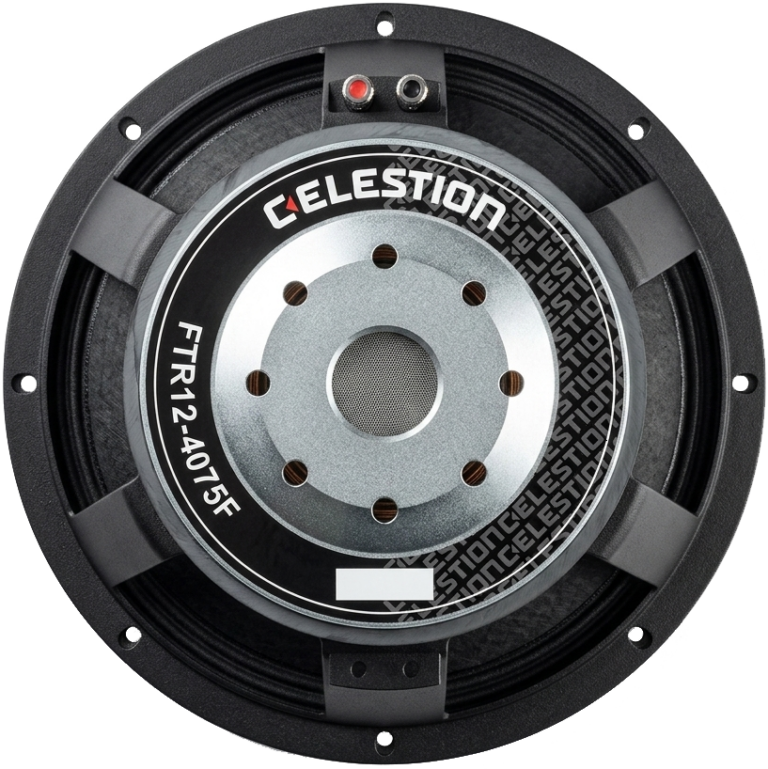

FTR12-4075F
12-inch, cast aluminium chassis, ferrite magnet LF driver
Low profile, space-efficient chassis
Optimised double suspension delivers greater linearity
Airflow vented magnet assembly for dynamic heat dispersion
Specifications
1400W
Continuous power rating
95dB
Sensitivity
4in
Voice coil diameter
Nominal diameter
305mm / 12in
Power rating
700W
Continuous power rating
1400W
Rated impedance
4Ω
Sensitivity
95dB
Frequency range
60Hz - 600Hz
Chassis type
Cast aluminium
Magnet type
Ferrite
Magnet weight
2.36kg / 83oz
Voice coil diameter
100mm / 4in
Voice coil material
Edgewound copper clad aluminium
Former material
Glass-Polyimide Composite
Cone material
Cellulose
Surround material
Cloth-sealed
Suspension
Double
Gap height (Hg)
10 / 0.39
VC winding height (Hvc)
23 / 0.91
Parameters
Sd
530.98cm2 / 82.30in2
Fs
37.1Hz
Mms
82.3g / 2.9oz
Qms
3.987
Qes
0.292
Qts
0.272
Re
2.9Ω
Vas
89.16l / 3.15ft3
BI
12.58Tm
Cms
0.22mm/N
Rms
4.81kg/s
Le (at 1kHz)
0.83mH
Xmax
9mm / 0.35in
Mounting Information
Overall diameter
315mm / 12.4in
Overall depth
121mm / 4.76in
Cut-out diameter
283mm / 11.14in
Mounting hole dimensions
6.5mm / 0.26in Ø
Number of mounting holes
8
Mounting hole PCD
294mm / 11.6in
Unit weight
8.78kg / 19.36lb
Packed Dimensions & Weight
Single pack size W x D x H
360mm x 360mm x 160mm / 14.2in x 14.2in x 6.3in
Single pack weight
9.5kg / 20.9lb
Frequency Response and Impedance Curves
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Parameters: Measured after unit subjected to pre-conditioning signal.
Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
