FTR15-3070C

15-inch, cast aluminium chassis, ferrite magnet bass/mid driver

Full gap flux saturation for increased Bl and reduced distortion
Glass loaded paper cone with weather-resistant impregnation
Airflow vented magnet assembly for dynamic heat dispersion

Specifications

800W

Continuous power rating

99dB

Sensitivity

3in

Voice coil diameter

Nominal diameter

381mm / 15in

Power rating

400W

Continuous power rating

800W

EIA power rating

500W

Rated impedance

8Ω

Sensitivity

99dB

Frequency range

40-4000Hz

Chassis type

Cast aluminium

Magnet type

Ferrite

Magnet weight

2.3kg / 81oz

Voice coil diameter

75mm / 3in

Voice coil material

Round copper

Former material

Glass fibre

Cone material

Glass loaded paper (weather-resistant)

Surround material

Cloth-sealed

Suspension

Single

Gap height (H_g)

10mm / 0.39in

VC winding height (H_vc)

16mm / 0.63in

Parameters

855.30cm² / 132.57in²

41.40Hz

Mms

81.73g / 2.88oz

Qms

3.510

Qes

0.429

Qts

0.382

6.07Ω

Vas

187.62l / 6.63ft³

17.33Tm

Cms

0.18mm/N

Rms

6.05kg/s

Le (at 1kHz)

0.59mH

Xmax

5.5mm / 0.22in

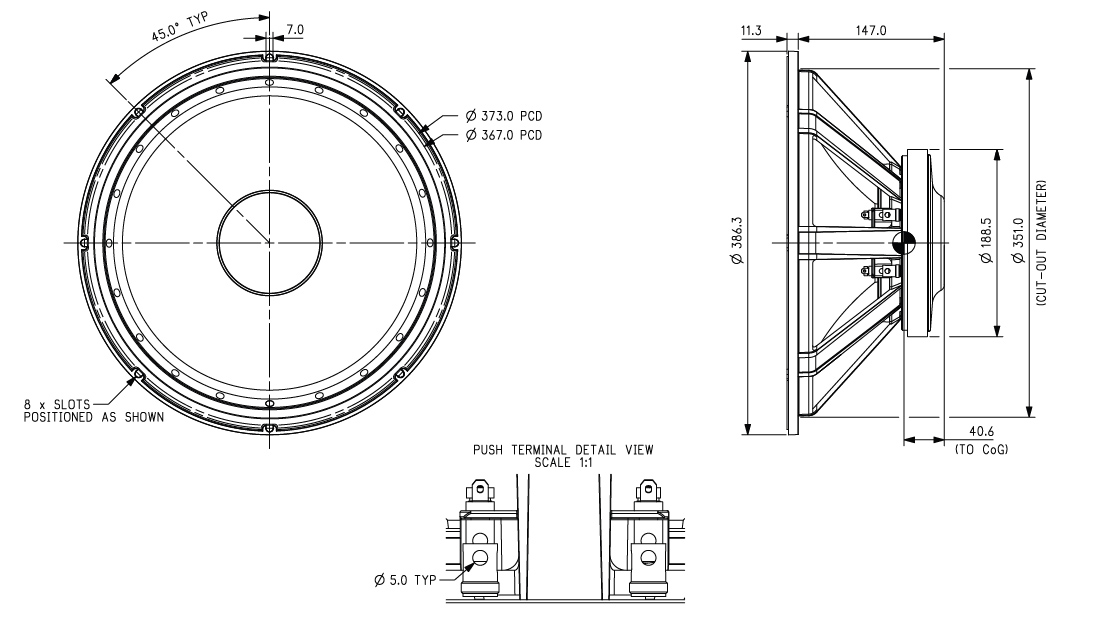

Mounting Information

Overall diameter

385mm / 15.16in

Overall depth

158mm / 6.2in

Cut-out diameter

351mm / 13.82in

Mounting hole dimensions

10x7mm / 0.39x0.27in

Number of mounting holes

Mounting hole PCD

365-375mm / 14.37-14.76in

Unit weight

6.3kg / 13.8lb

Packed Dimensions & Weight

Single pack size W x D x H

435mm x 435mm x 200mm / 17.1in x 17.1in x 7.9in

Single pack weight

7.7kg / 17.0lb

Multi pack qty

Multi pack size W x D x H

1210mm x 1050mm x 980mm / 47.6in x 41.3in x 35.4in

Multi pack weight

260kg / 570lb

Frequency Response and Impedance Curves

Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis

Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous power rating: Defined as 3dB greater than the AES rating.

Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.

Parameters: Measured after unit subjected to pre-conditioning signal.

Xmax: 0.5*(H_vc-H_g) + 0.25*H_g
