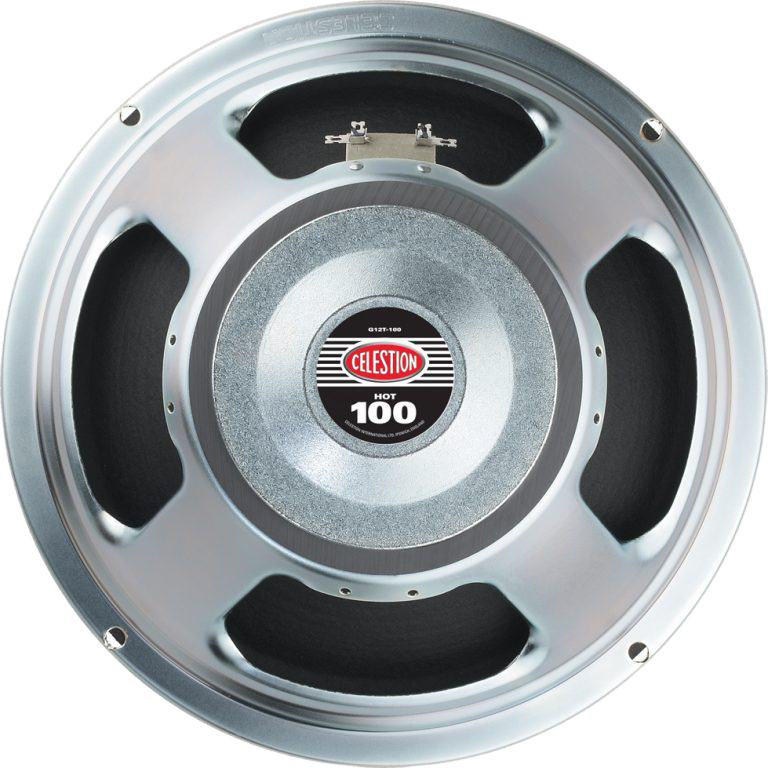

Hot 100 (Legacy)
12-inch steel-chassis guitar speaker
With a massive 100W power rating, this speaker sits perfectly in high-power or hybrid amplifiers. It voices a modern sound with a big bass presence.
Specifications
12in
Diameter
4Ω, 8Ω or 16Ω
Rated impedance
97dB
Sensitivity
Nominal diameter
305mm / 12in
Power rating
100W
Rated impedance
4Ω, 8Ω or 16Ω
Sensitivity
97dB
Chassis type
Pressed steel
Magnet type
Ceramic
Magnet weight
0.9kg / 35oz
Voice coil diameter
2in / 50.8mm
Voice coil material
Round copper
Frequency range
80-5000Hz
Resonance frequency, Fs
86Hz
DC resistance, Re
3.4Ω, 7.4Ω & 14.83Ω
8Ω Frequency Response
Mounting Information
Cut-out diameter
283mm / 11.1in
Diameter
309mm / 12.2in
Magnet structure diameter
148mm / 5.8in
Mounting hole dimensions
7.9mm / 0.31in Ø
Mounting hole PCD
297mm / 11.7in
Number of mounting holes
4
Chassis depth (inc gasket)
91mm / 3.6in
Magnet depth
33mm / 1.3in
Overall depth
124mm / 4.9in
Unit weight
3.2kg / 7.1lb
