NTR06-1705D
6.5-inch cast aluminium chassis, neodymium magnet mid/bass driver
OEM Only
- Copper sleeved pole to reduce distortion
- Vented magnet assembly for more efficient cooling
Specifications
300W
Continuous power rating
90dB
Sensitivity
1.75in
Voice coil diameter
Nominal diameter
165mm / 6.5in
Power rating
150W
Continuous power rating
300W
Rated impedance
8Ω
Sensitivity
90dB
Frequency range
70-7000Hz
Chassis type
Cast aluminium
Magnet type
Neodymium
Voice coil diameter
44mm / 1.75in
Voice coil material
Copper clad aluminium
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Elastomer
Suspension
Single
Gap height (Hg)
6mm / 0.24in
VC winding height (Hvc)
15mm / 0.63in
Additional impedances
16Ω
Parameters
Sd
153.94cm2 / 23.86in2
Fs
49.00Hz
Mms
16.58g / 0.58oz
Qms
6.123
Qes
0.403
Qts
0.378
Re
5.27Ω
Vas
21.42l / 0.76ft3
BI
8.17Tm
Cms
0.64mm/N
Rms
0.83kg/s
Le (at 1kHz)
0.23mH
Xmax
6mm / 0.26in

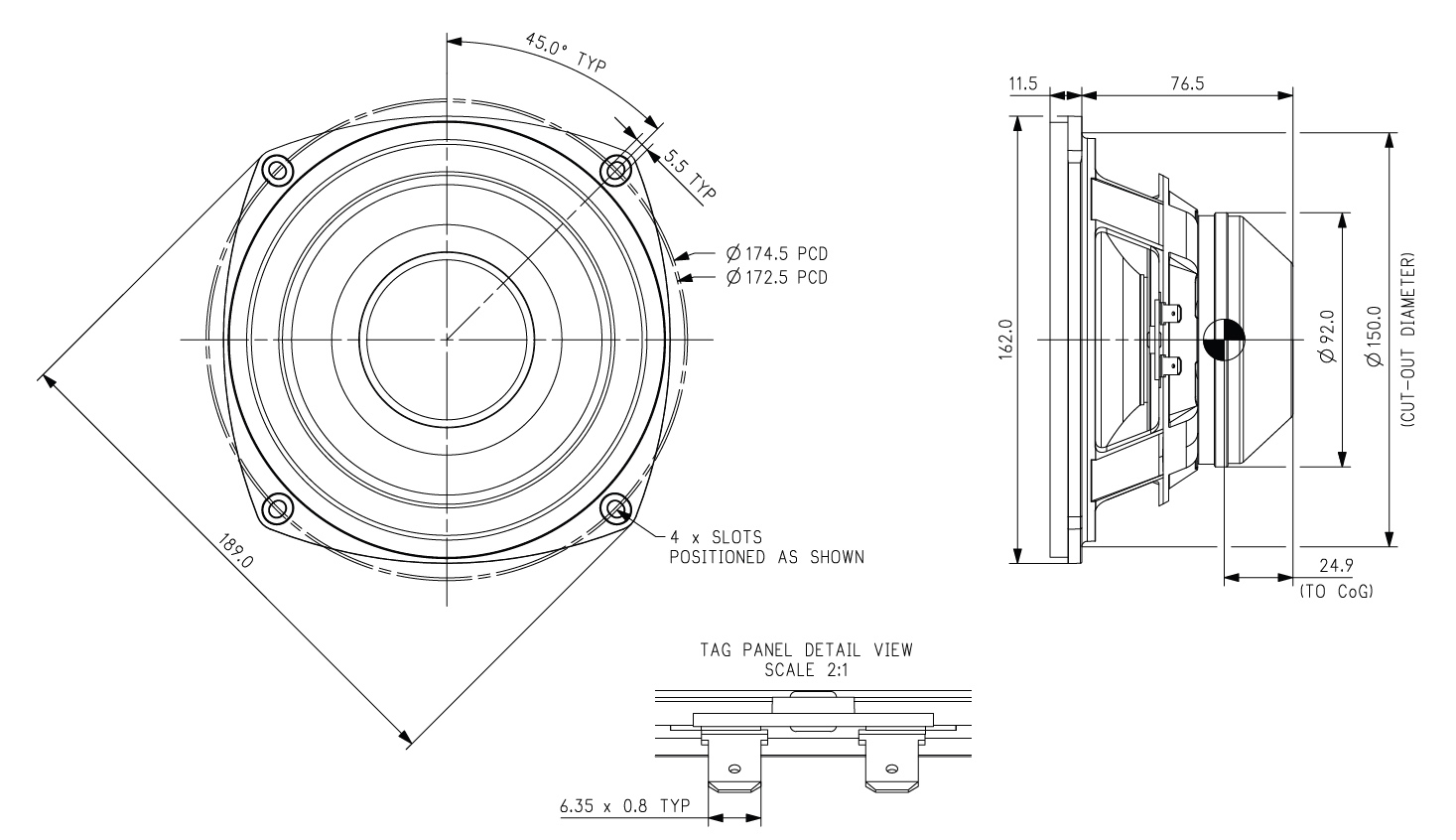

Mounting Information
Overall diameter
189mm / 7.44in (max)
Overall depth
87mm / 3.4in
Cut-out diameter
150mm / 5.9in
Mounting hole dimensions
6.5x5.5mm / 0.26x0.22in
Number of mounting holes
4
Mounting hole PCD
173.5mm / 6.83in
Unit weight
0.95kg / 2.1lb
Packed Dimensions & Weight
Single pack size W x D x H
190mm x 190mm x 110mm / 7.5in x 7.5in x 4.3in
Single pack weight
1.1kg / 2.4lb
Multi pack qty
120
Multi pack size W x D x H
1070mm x 850mm x 860mm / 42.1in x 33.5in x 33.9in
Multi pack weight
140kg / 308lb
Frequency Response and Impedance Curves
Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Parameters: Measured after unit subjected to pre-conditioning signal.
Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
