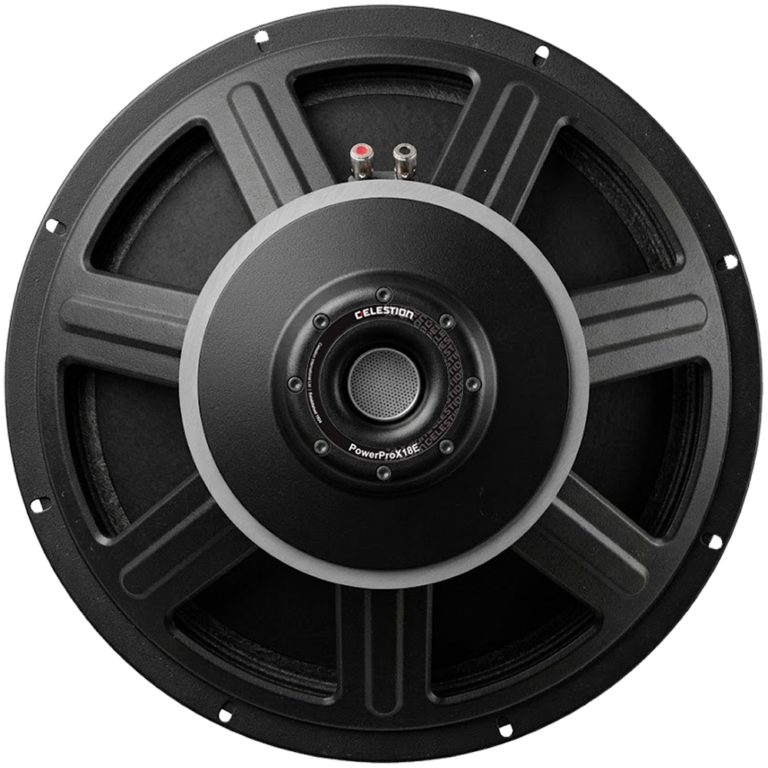

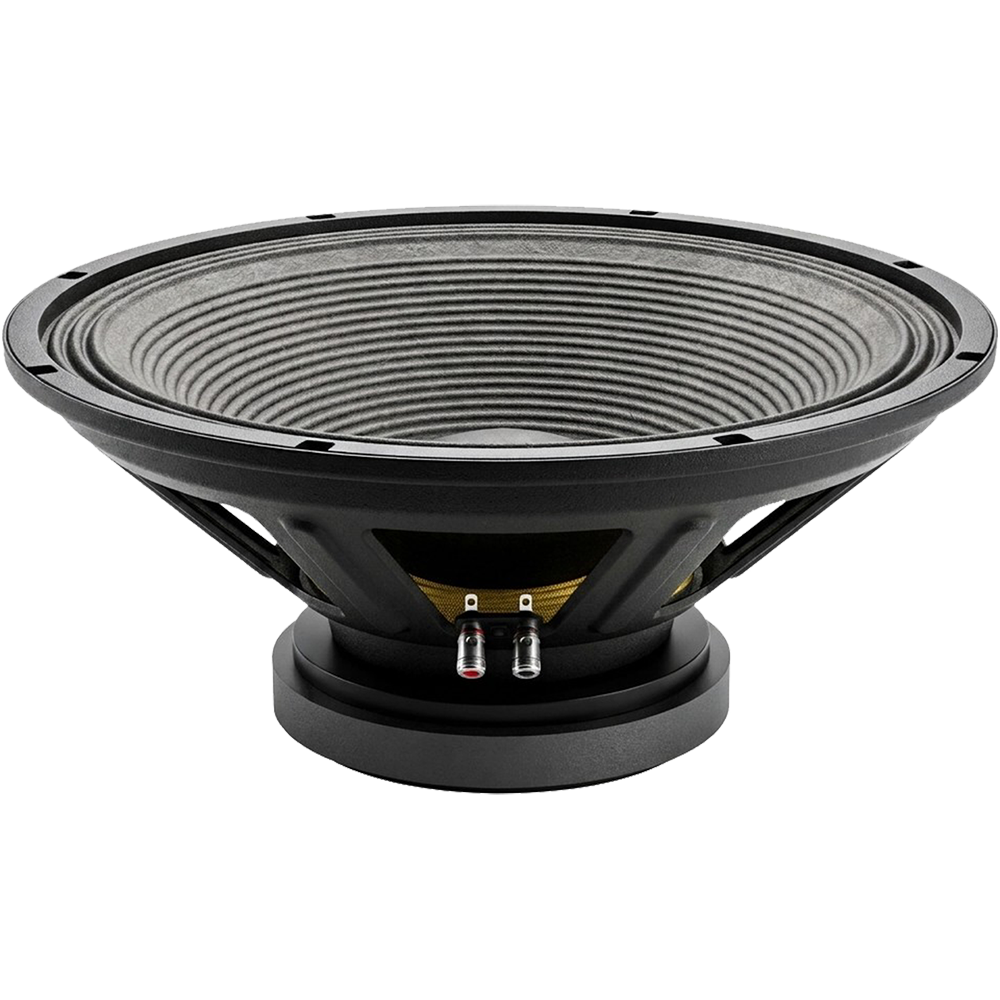

PowerProX18E

18-inch pressed steel chassis, ferrite magnet LF driver

PowerProX speakers are built for maximum performance and reliability throughout the lifespan of each speaker
Dynamic airflow venting delivers class-leading heat management
Multi-layer voice coil
Robust pressed steel chassis

Specifications

2000W

Continuous power rating

96dB

Sensitivity

4in

Voice coil diameter

Nominal diameter

457mm / 18in

Power rating

1000W

Continuous power rating

2000W

Rated impedance

8Ω

Sensitivity

96dB

Frequency range

45 - 450Hz

Chassis type

Pressed steel

Magnet type

Ferrite

Magnet weight

3.54kg / 125oz

Voice coil diameter

100mm / 4in

Voice coil material

Copper

Former material

Glass fibre

Cone material

Cellulose

Surround material

Triple roll, cloth sealed

Suspension

Single

Gap height (H_g)

11.75mm / 0.46in

VC winding height (H_vc)

25mm / 0.98in

Parameters

1256cm² / 194.68in²

32Hz

Mms

226.06

Qms

5.877

Qes

0.47

Qts

0.435

5.82Ω

Vas

246.15l / 8.69 ft³

23.67Tm

Cms

0.11mm/N

Rms

7.7kg/s

Le (at 1kHz)

1.97mH

Xmax

9.5mm / 0.374in

Mounting Information

Overall diameter

459.6mm / 18.09in

Overall depth

218mm / 8.58in

Cut-out diameter

423mm / 16.65in

Number of mounting holes

Mounting hole PCD

432-445mm / 17-17.5in

Unit weight

12.2kg / 26.9lb

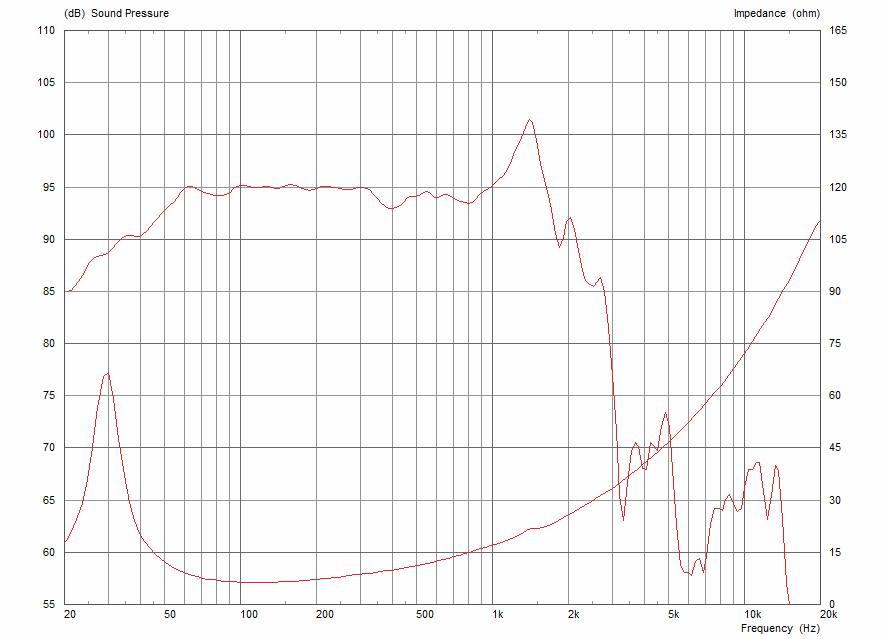

Frequency Response & Impedance

Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous power rating: Defined as 3dB greater than the AES rating.

Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.

Parameters: Measured after unit subjected to pre-conditioning signal.

Xmax: 0.5*(H_vc-H_g) + 0.25*H_g

Xmech: Maximum peak-to-peak excursion before damage.
