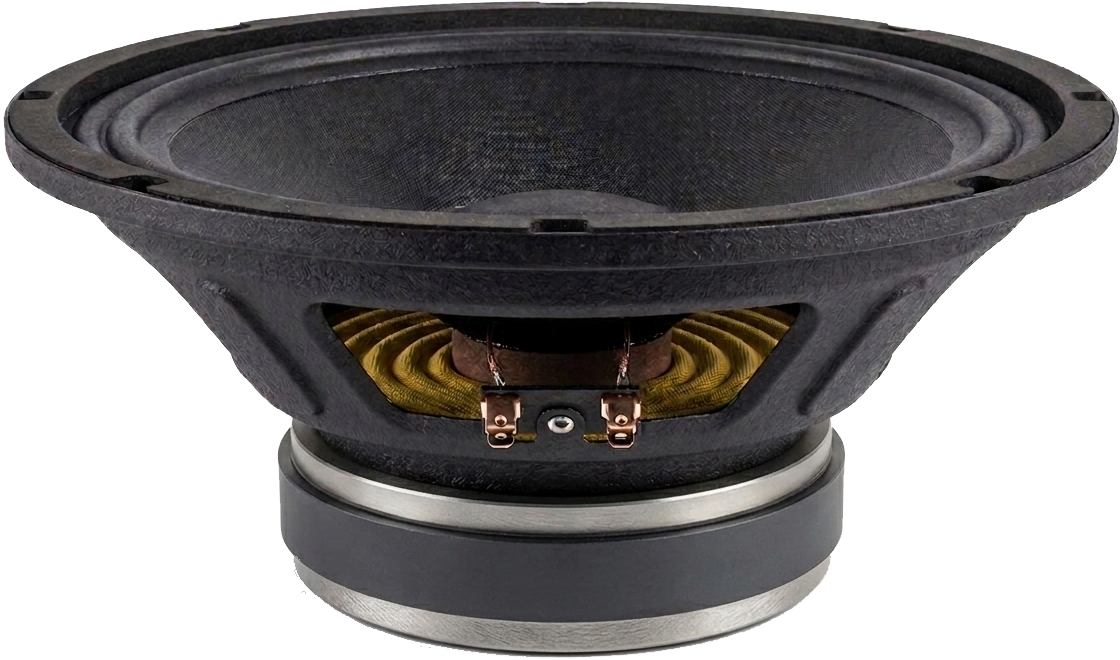

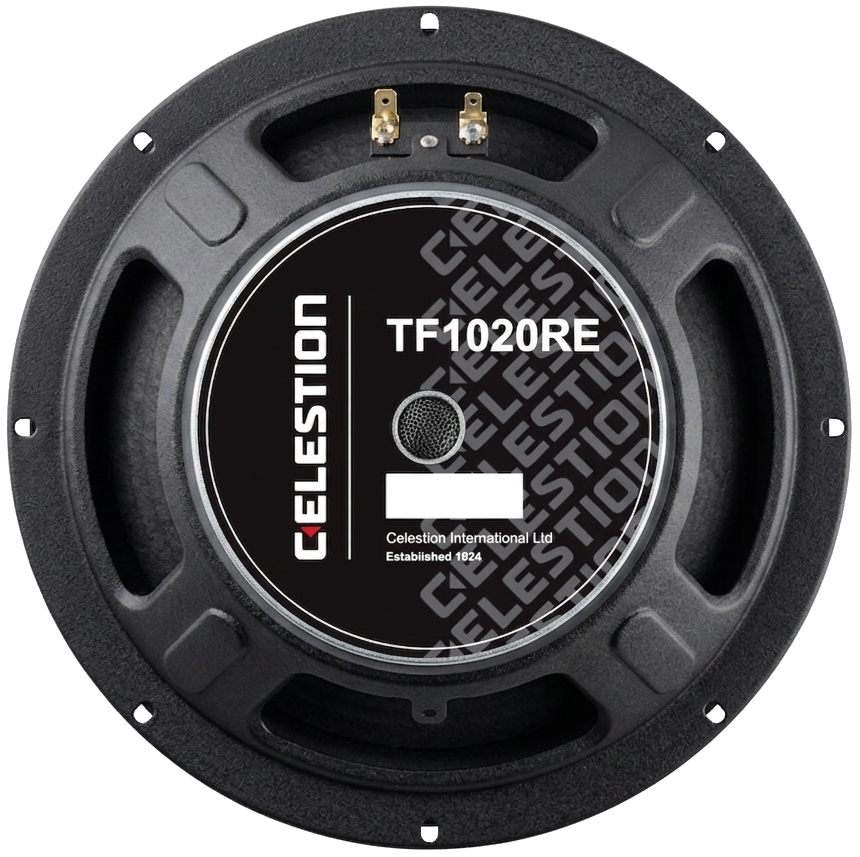

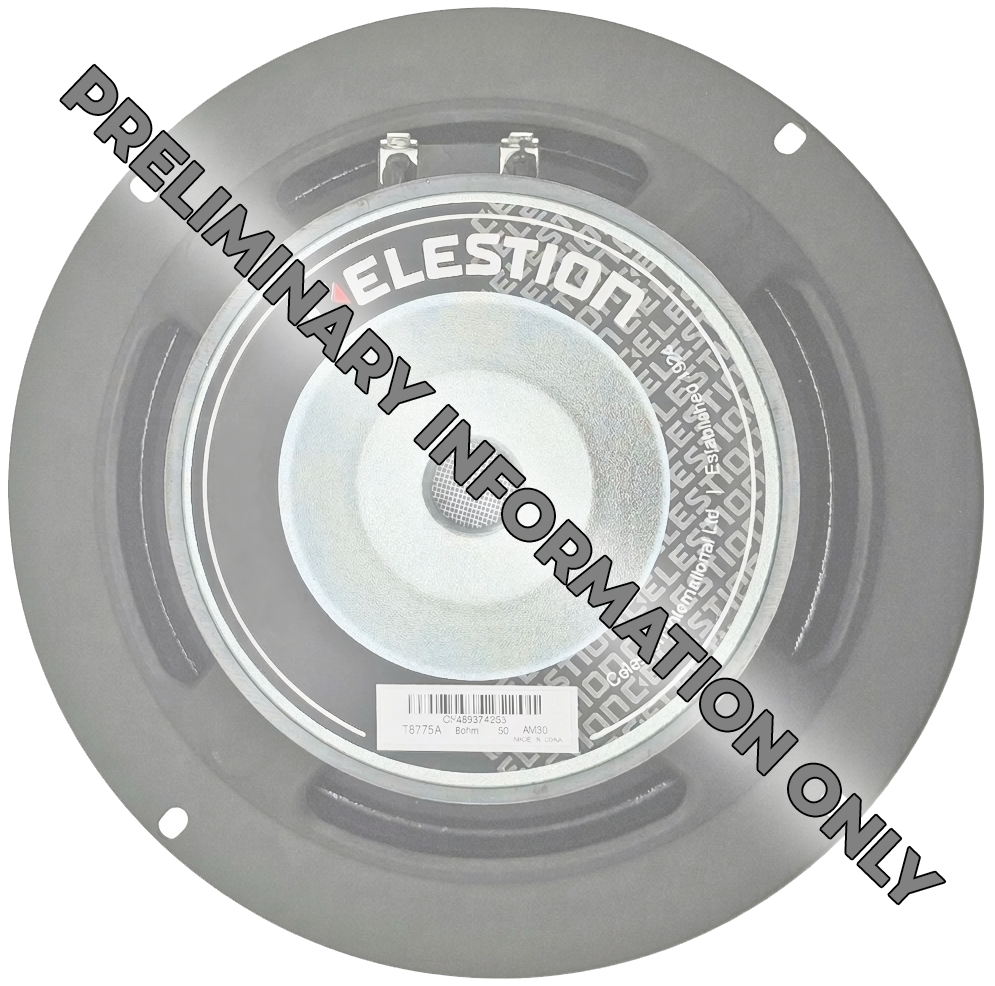

TF1020RE
10-inch pressed steel chassis, ferrite magnet mid/bass driver
OEM Only
Specifications
500W
Continuous power rating
97dB
Sensitivity
2in
Voice coil diameter
Nominal diameter
254mm / 10in
Power rating
250W
Continuous power rating
500W
Rated impedance
8Ω
Sensitivity
97dB
Frequency range
50-2000Hz
Chassis type
Pressed steel
Magnet type
Ceramic
Magnet weight
1.1kg / 40oz
Voice coil diameter
50mm / 2in
Voice coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Gap height (Hg)
6.5mm / 0.26in
VC winding height (Hvc)
15mm / 0.59in
Parameters
Sd
346.36cm2
Fs
52.6Hz
Mms
34.957g
Qms
2.797
Qes
0.448
Qts
0.386
Re
5.63Ω
Vas
44.53l / 1.57ft3
BI
12.04Tm
Cms
0.262mm/N
Rms
4.127kg/s
Le (at 1kHz)
0.682mH
Xmax
5.875mm / 0.23in
Mounting Information
Overall diameter
256mm / 10.08in
Overall depth
113mm / 4.4in
Cut-out diameter
229mm / 9.02in
Mounting hole dimensions
6x4.9mm / 0.23x0.19in
Number of mounting holes
8
Mounting hole PCD
245mm / 9.65in
Unit weight
3.7kg / 8.2lb
Frequency Response and Impedance Curves
Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis
