TF1225CX (Legacy)
Features
Field replaceable PETP Film HF diaphragm
80° nominal HF coverage
HF repair kit available
Specifications
305mm/12in
Nominal Diameter
250W
Nominal Power Rating
8Ω
Rated Impedance
97dB
Sensitivity
Nominal Diameter
305mm/12in
Nominal Power Rating
250W
Continuous Power Rating
500W
Sensitivity
97dB
Rated Impedance
8Ω
Frequency Range
40Hz-4000Hz
Voice coil diameter (mm)
64mm
Voice coil diameter (in)
2.5in
Chassis Type
Pressed steel
Magnet Type
Ferrite
Magnet Weight
1.2kg/42oz
Voice coil material
Round copper
Former Material
Polyimide
Cone material
Kevlar loaded paper
Surround Material
Cloth-sealed
Suspension
Single
Xmax
2.5mm/0.098in
Gap Depth
8mm/0.31in
Voice coil winding width
13mm/0.51in
Small Signal Parameters
Sd
530.93cm2/82.29in2
Fs
63.50Hz
Mms
55.59g/1.96oz
Qms
3.119
Qes
0.405
Qts
0.358
Re
5.57Ω
Vas
45.12I/1.59ft3
BI
17.46Tm
Cms
0.11mm/N
Rms
7.11kg/s
Le (at 1kHz)
1.20mH

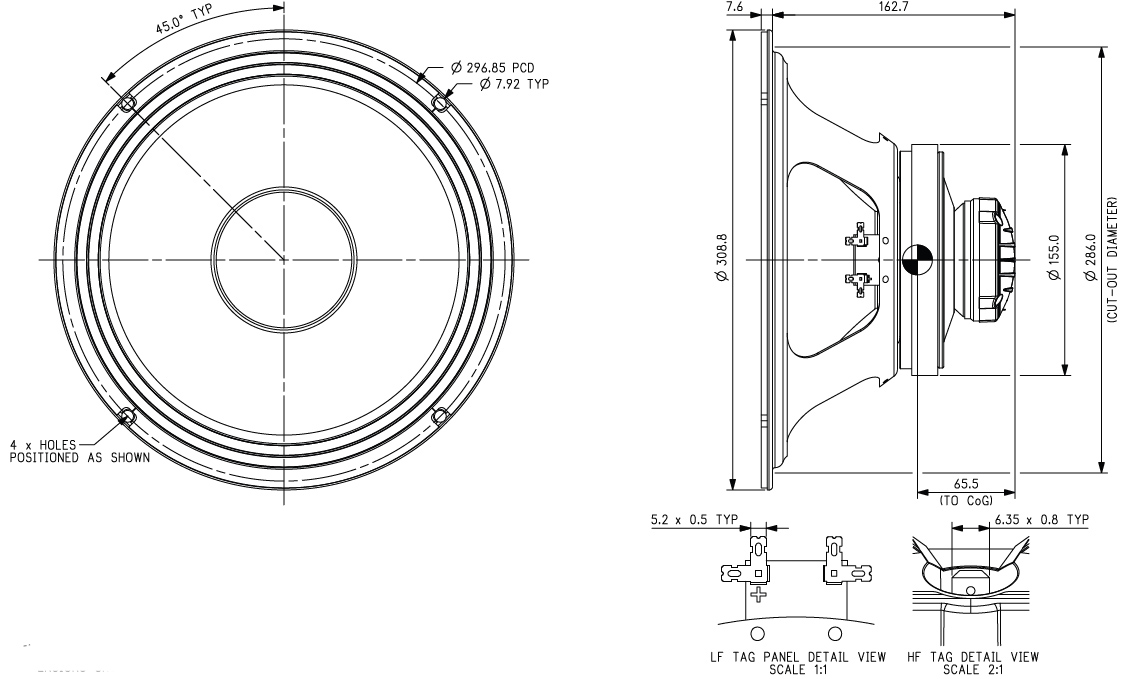

Mounting Information
Mounting slot dimensions
7.9mm/0.31in Ø
Mounting slot PCD
297mm/11.69in
Number of mounting slots
4
Overall Depth
172mm/6.77in
Overall Diameter (mm)
309mm
Overall Diameter (in)
12.2in
Cut-out diameter
286mm/11.2in
Unit Weight
4.6kg/10.1lb
Packed Dimensions & Weight
Single pack size W x D x H
354mm x 354mm x 189mm/13.9in x 13.9in x 7.4in
Single pack weight
5.4kg/11.8lb
Multi Pack Qty
48
Multi pack size W x D x H
970mm x 1070mm x 850mm/38.1in x 42.1in x 33.4in
Multi pack weight
250kg/550lb
Additional HF Specifications
Power Rating
40Wrms
Continuous Power Rating
80W
Nominal Impedance
8Ω
Sensitivity
110dB
Frequency Range
1200Hz-18,000Hz
Recommended Min. Crossover 12dB/oct
2200Hz
Voice Coil Diameter
45mm/1.75in
Magnet Type
Neodymium
Diaphragm and Surround Material
PETP film
Frequency Response and Impedance Curves
Black: LF response curve | Red: HF response curve
Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous Power Rating is defined as 3dB greater than the AES rating.
Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.
Xmax is derived from: (voice coil winding width-gap depth)/2.
HF Power Rating:Tested for two hours on plane wave tube using a continuous, band limited pink noise signal as per AES standard. Power calculated on minimum impedance
HF Continuous Power Handling is defined as 3dB greater than the AES rating
