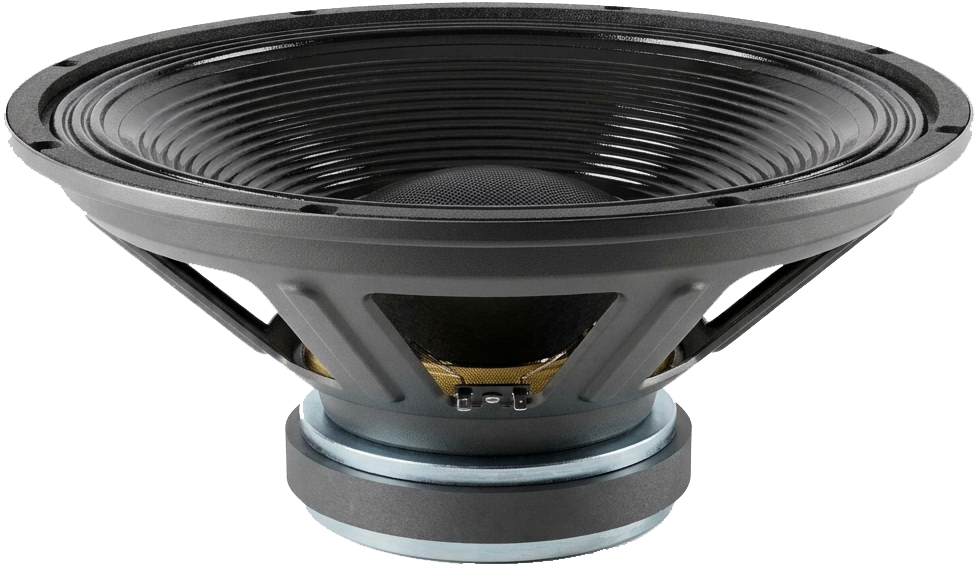

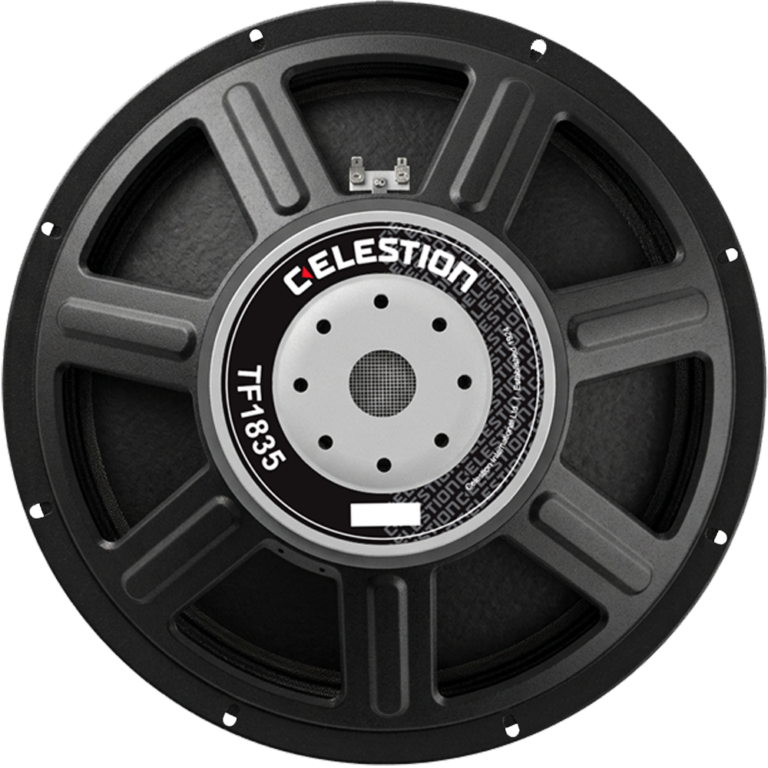

TF1835
- Balanced Airflow Venting provides enhanced cooling
- Multi-layer voice coil
- Weatherproof cone coating
Specifications
1400W
Continuous power rating
95dB
Sensitivity
3.5in
Voice coil diameter
Nominal diameter
457mm / 18in
Power rating
700W
Continuous power rating
1400W
Rated impedance
8Ω
Sensitivity
95dB
Frequency range
35-1000Hz
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
2.95kg / 104oz
Voice coil diameter
89mm / 3.5in
Voice coil material
Copper
Former material
Glass fibre
Cone material
Reinforced cellulose, waterproof coating
Surround material
Triple roll, cloth sealed
Suspension
Single
Gap height (Hg)
10mm / 0.39in
VC winding height (Hvc)
25mm / 0.98in
Parameters
Sd
1134.12m2 / 175.79in2
Fs
37Hz
Mms
226.79g / 7.9oz
Qms
6.257
Qes
0.585
Qts
0.535
Re
5.26Ω
Vas
148.3l / 5.24ft3
BI
21.78Tm
Cms
0.081mm/N
Rms
8.431kg/s
Le (at 1kHz)
1.91mH
Xmax
10mm / 0.39in
Mounting Information
Overall diameter
460mm / 18.11in
Overall depth
207.3mm / 8.16in
Cut-out diameter
423.6mm / 16.67in
Mounting hole dimensions
7x13.5mm / 0.28x0.53in
Number of mounting holes
8
Mounting hole PCD
432-445mm / 17-17.52in
Unit weight
10.35kg / 22.8lb

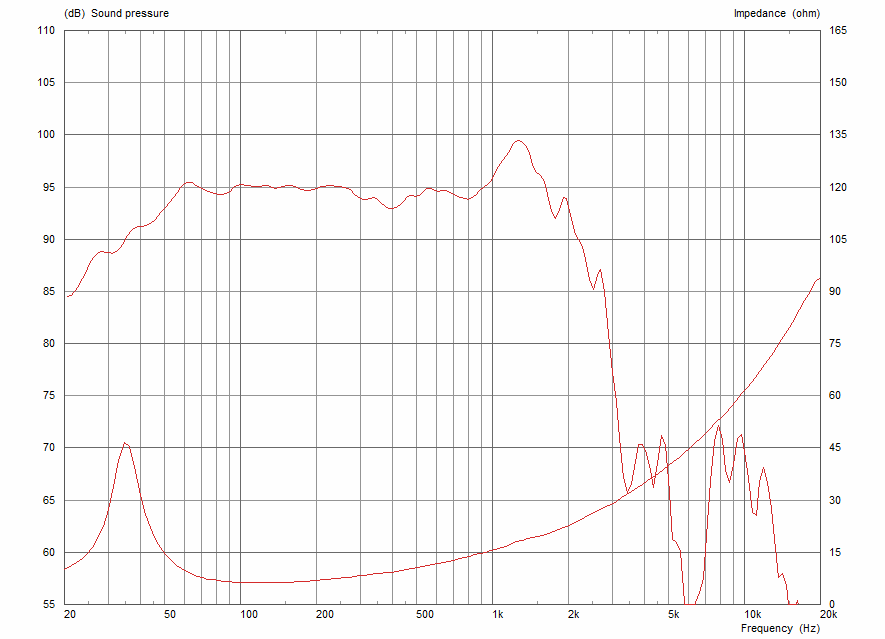

Frequency Response & Impedance
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Parameters: Measured after unit subjected to pre-conditioning signal.
Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
