TFX0515
5-inch pressed steel chassis, ferrite magnet coaxial driver
- Silk dome tweeter
- 100° nominal HF coverage
Specifications
300W
Continuous power rating
89dB
Sensitivity
1.5in
Voice coil diameter LF
1in
Voice coil diameter HF
Nominal diameter
125mm / 5in
Power rating
150W
Continuous power rating
300W
Rated impedance
8Ω
Sensitivity
89dB
Frequency range
80-4000Hz
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
0.65kg / 23oz
Voice coil diameter
38mm / 1.5in
Voice coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Elastomer
Suspension
Single
Gap height (Hg)
6mm / 0.24in
VC winding height (Hvc)
10.5mm / 0.41in
Parameters
Sd
95cm2 / 14.72in2
Fs
74Hz
Mms
9.073g / 0.32oz
Qms
8.293
Qes
0.503
Qts
0.474
Re
5.77Ω
Vas
6.53l / 0.23ft3
BI
6.96Tm
Cms
0.509mm/N
Rms
0.509kg/s
Le (at 1kHz)
0.363mH
Xmax
3.75mm / 0.14in
Mounting Information
Overall diameter
136x151mm / 5.4x5.9in
Overall depth
72mm / 2.8in
Cut-out diameter
116mm / 4.6in
Mounting hole dimensions
4.5mm / 0.18in Ø
Number of mounting holes
4
Mounting hole PCD
140mm / 5.5in
Unit weight
1.6kg / 3.5lb
Packed Dimensions & Weight
Single pack size W x D x H
200mm x 220mm x 125mmm / 7.9in x 8.7in x 4.9in
Single pack weight
2.2kg / 4.85lb
Multi pack qty
30
Multi pack size W x D x H
750mm x 290mm x 310mm / 29.5in x 11.4in x 12.2in
Multi pack weight
50kg / 110lb
Additional HF Specifications
Power rating
10W
Continuous power rating
20W
Rated impedance
8Ω
Sensitivity
96dB
Frequency range
1400-20,000Hz
Recommended min. crossover 12dB/oct
2200Hz
Voice coil diameter
25mm / 1in
Magnet type
Neodymium
Diaphragm material
Silk
Surround material
Silk
Frequency Response and Impedance Curves

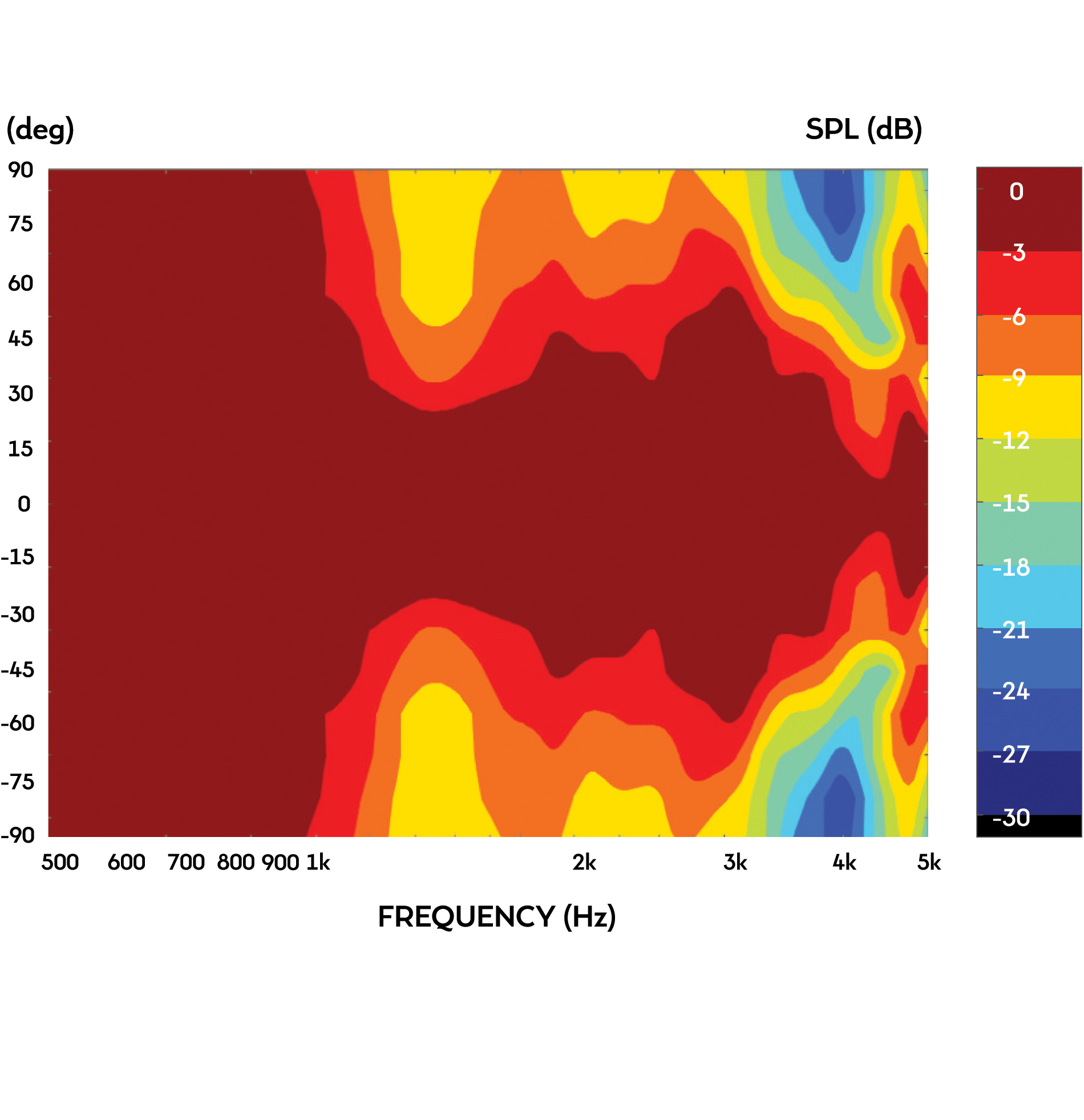

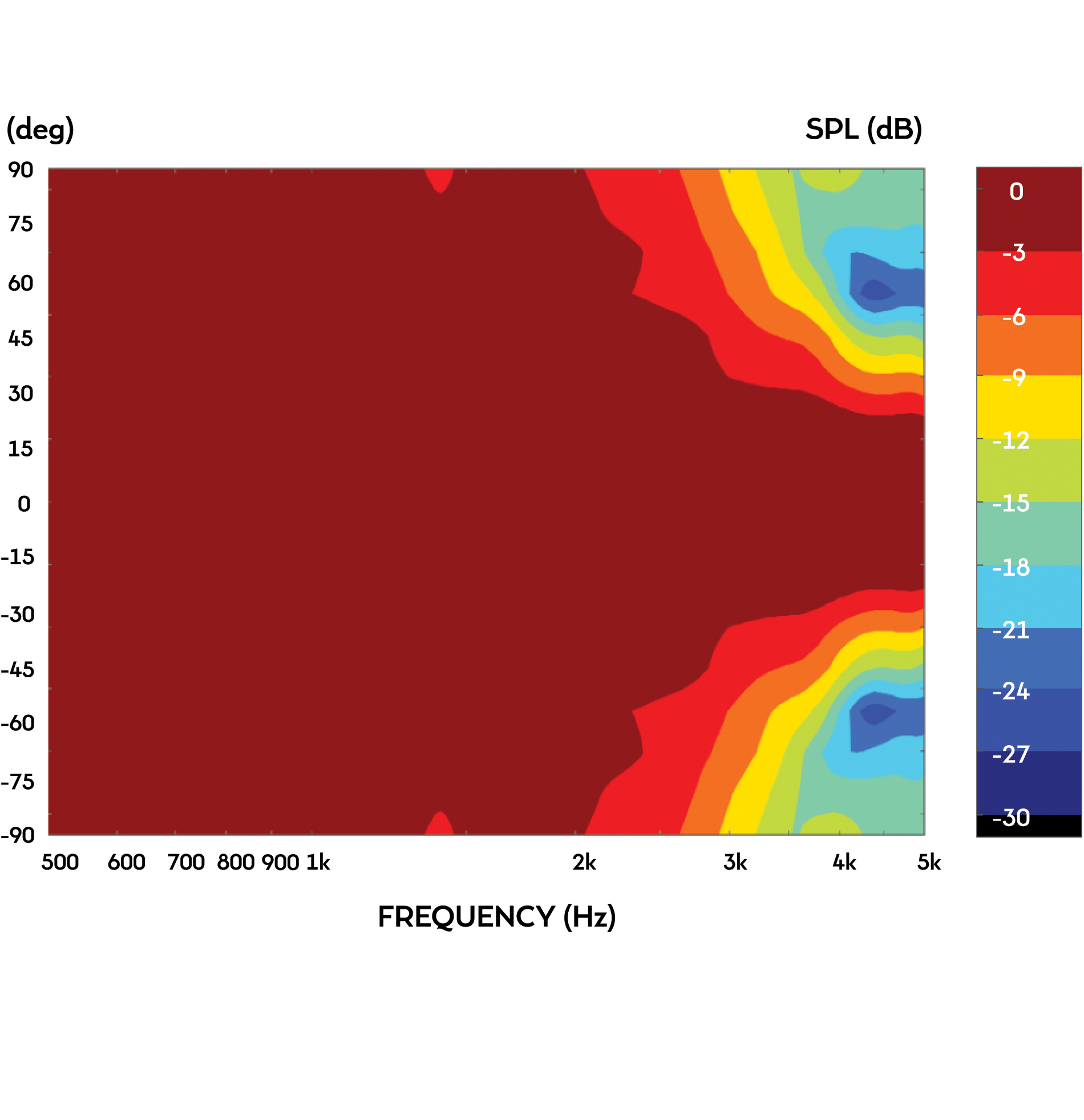

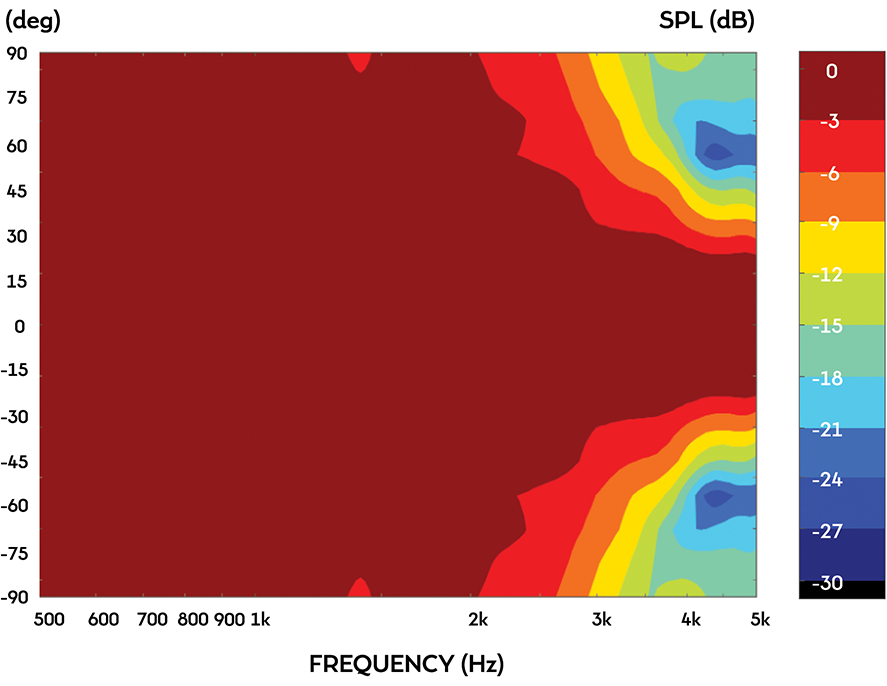

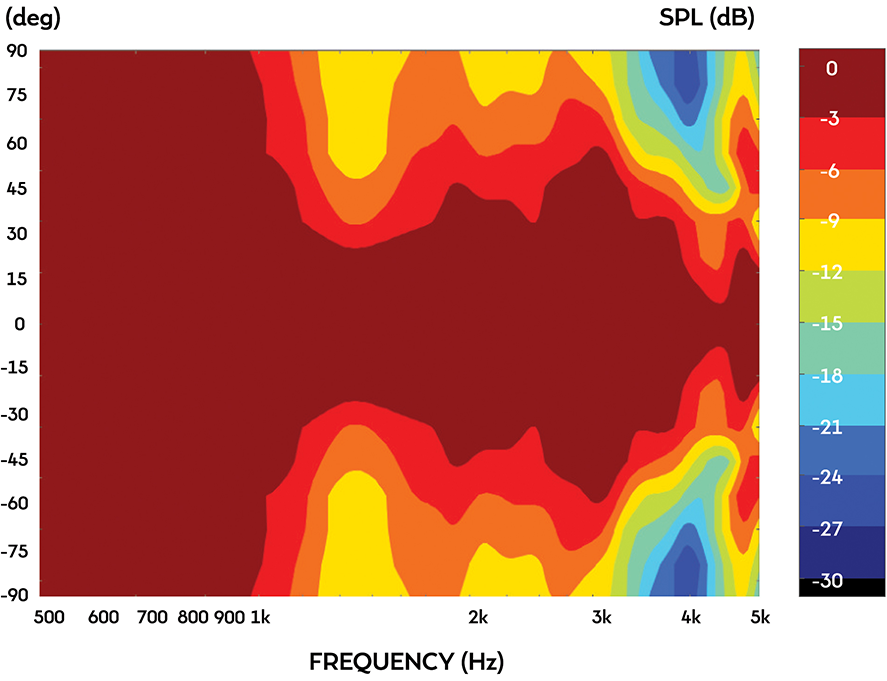

Red: LF response curve | Blue: HF response curve
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
HF power rating: Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
Suggested crossover design available online at celestion.com/speakerworld
