TFX0615
Silk dome tweeter
Integrated HF waveguide

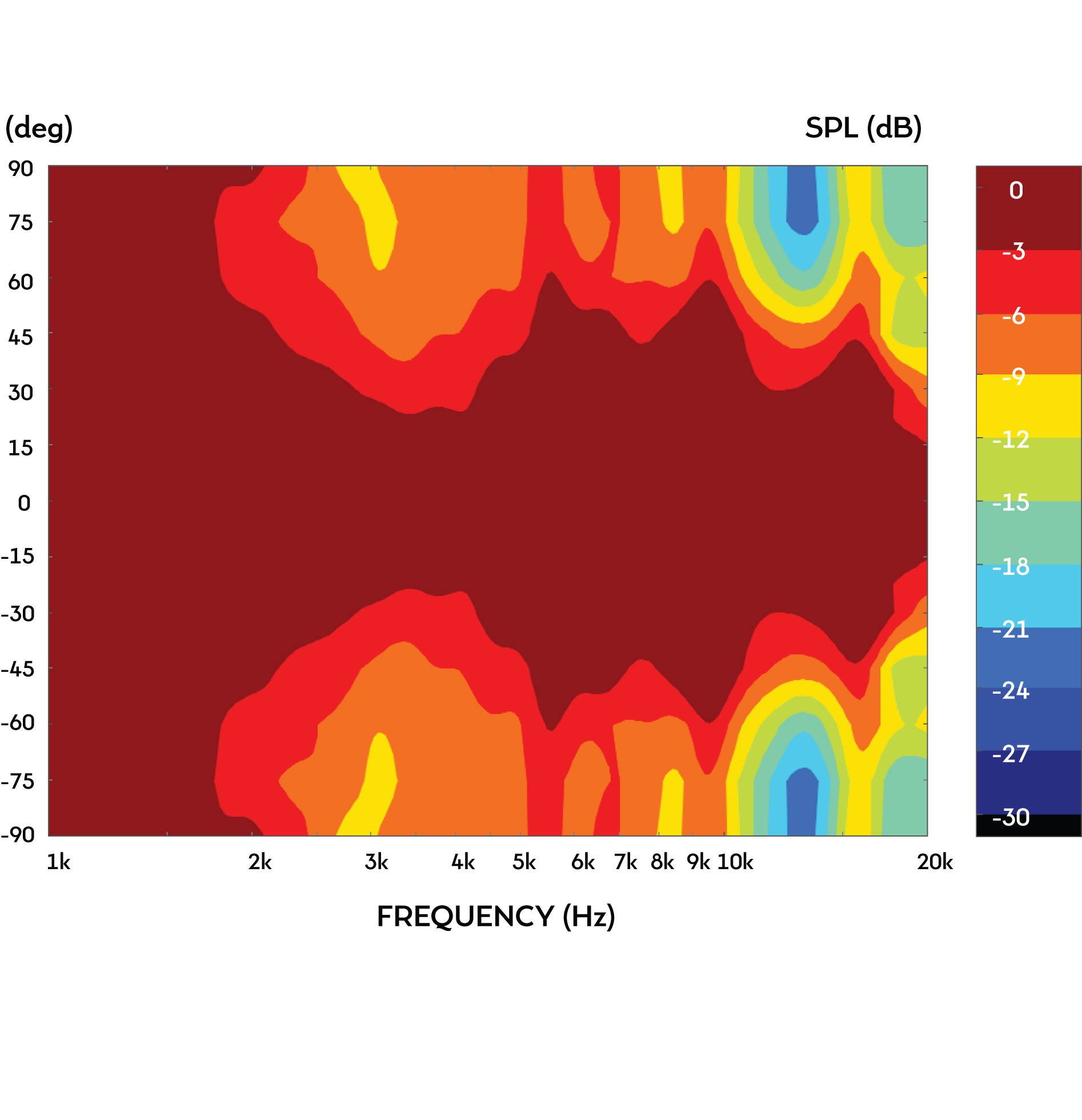

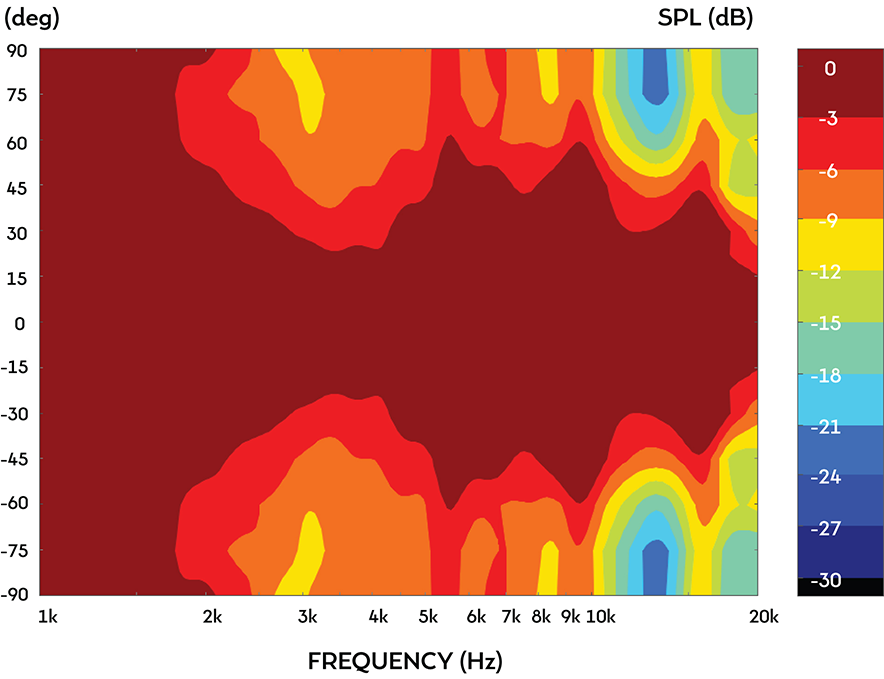

110° nominal HF coverage
Specifications
150W
Nominal Power Rating
94dB
Sensitivity
1.5in
Voice coil diameter
Nominal Diameter
165mm/6.5in
Nominal Power Rating
150W
Continuous Power Rating
300W
Sensitivity
94dB
Rated Impedance
8Ω
Frequency Range
100Hz-6000Hz
Voice coil diameter (mm)
38mm
Voice coil diameter (in)
1.5in
Chassis Type
Pressed Steel
Magnet Type
Ferrite
Magnet Weight
0.81kg/23oz
Voice coil material
Round copper
Former Material
Polyimide
Cone material
Kevlar loaded paper
Surround Material
Cloth-sealed
Suspension
Single
Xmax
3.75mm/0.15in
Gap Depth
6mm/0.24in
Voice coil winding width
13.5mm/0.53in
Small Signal Parameters
Sd (cm2 )
153.94
Sd (in2 )
23.86
Fs
96.80Hz
Mms
12.62g/0.45oz
Qms
3.038
Qes
0.429
Qts
0.376
Re
5.39Ω
Vas (l)
7.18I/0.25ft3
BI
9.82Tm
Cms
0.21mm/N
Rms
2.53kg/s
Le (at 1kHz)
0.46mH
Mounting Information
Mounting slot dimensions
Ø4.0mm/0.16in
Mounting slot PCD
168.5mm/6.63in
Number of mounting slots
4
Overall Depth
75.5mm/3in
Overall Diameter (mm)
178mm
Overall Diameter (in)
7in
Cut-out diameter
145mm/5.7in
Unit Weight
2.1kg/4.6lb
Packed Dimensions & Weight
Multi Pack Qty
36
Multi pack size W x D x H
742mm x 541mm x 300mm/29.2in x 21.3in x 11.8in
Multi pack weight
80kg/176lb
Additional HF Specifications
Power Rating
10W
Continuous Power Rating
20W
Nominal Impedance
8Ω
Sensitivity
98dB
Frequency Range
1700Hz-20,000Hz
Recommended Min. Crossover 12dB/oct
2200Hz
Voice Coil Diameter
25mm/1in
Magnet Type
Neodymium
Diaphragm and Surround Material
Silk

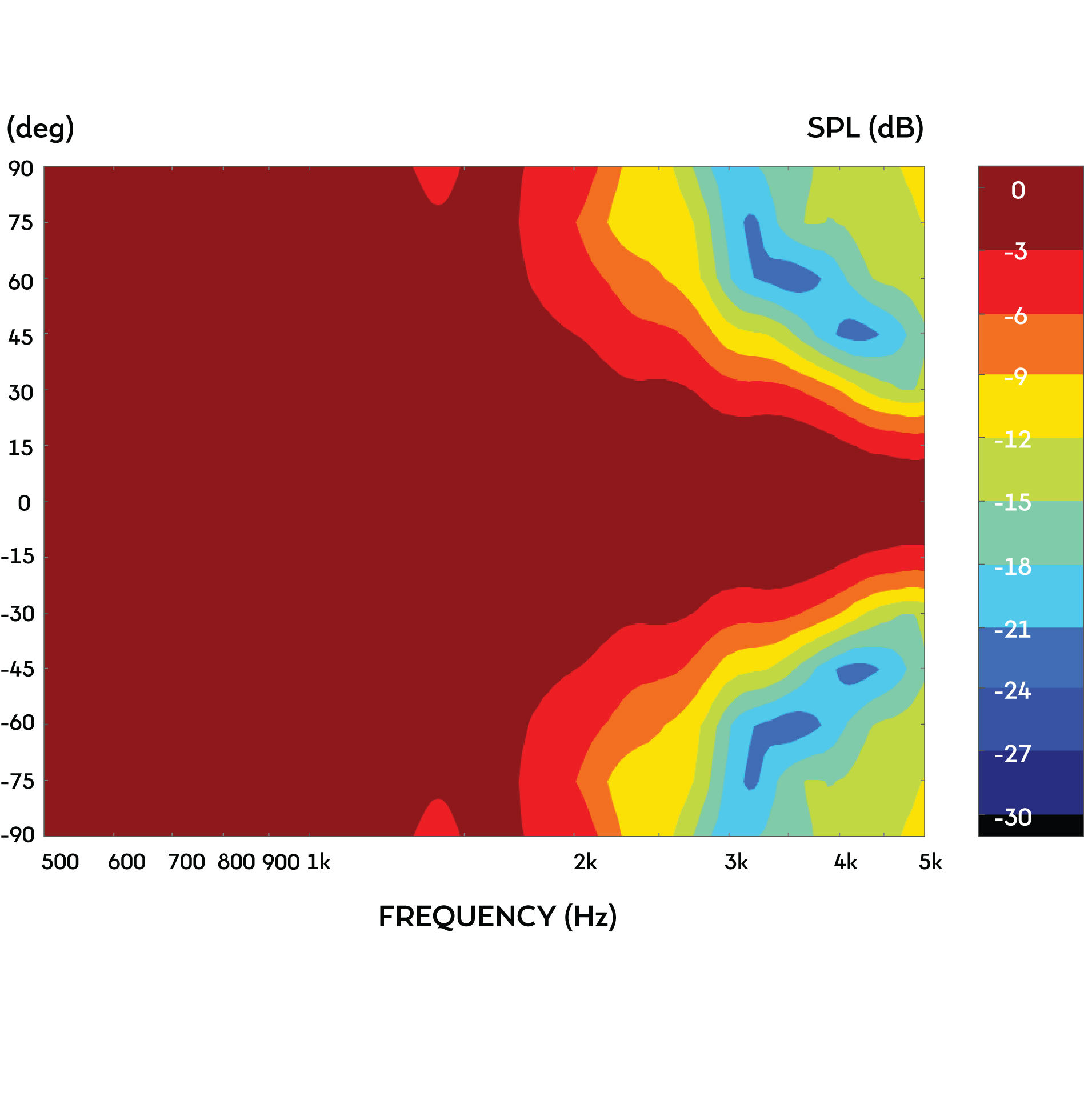

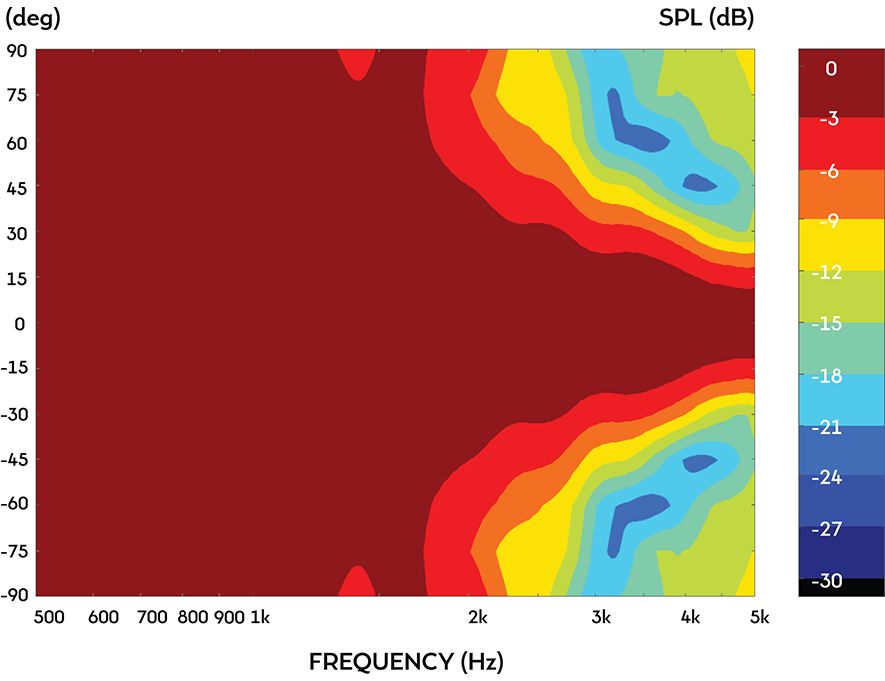

Frequency Response and Impedance Curves
Black: LF response curve | Red: HF response curve
Power Rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous Power Rating is defined as 3dB greater than the AES rating.
Sensitivity measured on axis at 1W, 1m in 2Π anechoic environment.
Xmax is derived from: (voice coil winding width-gap depth)/2.
HF Power Rating:Tested for two hours on plane wave tube using a continuous, band limited pink noise signal as per AES standard. Power calculated on minimum impedance
HF Continuous Power Handling is defined as 3dB greater than the AES rating
