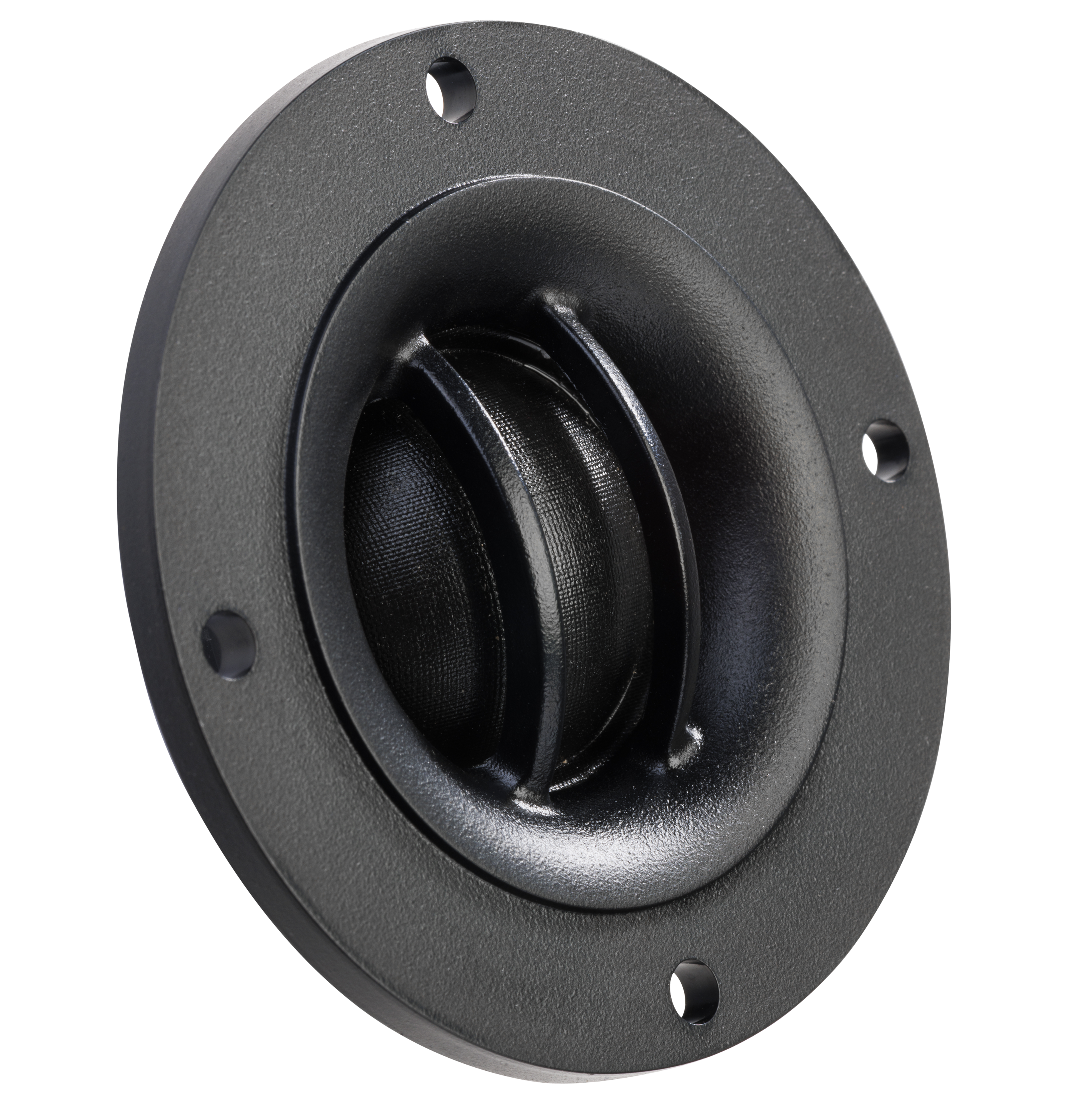

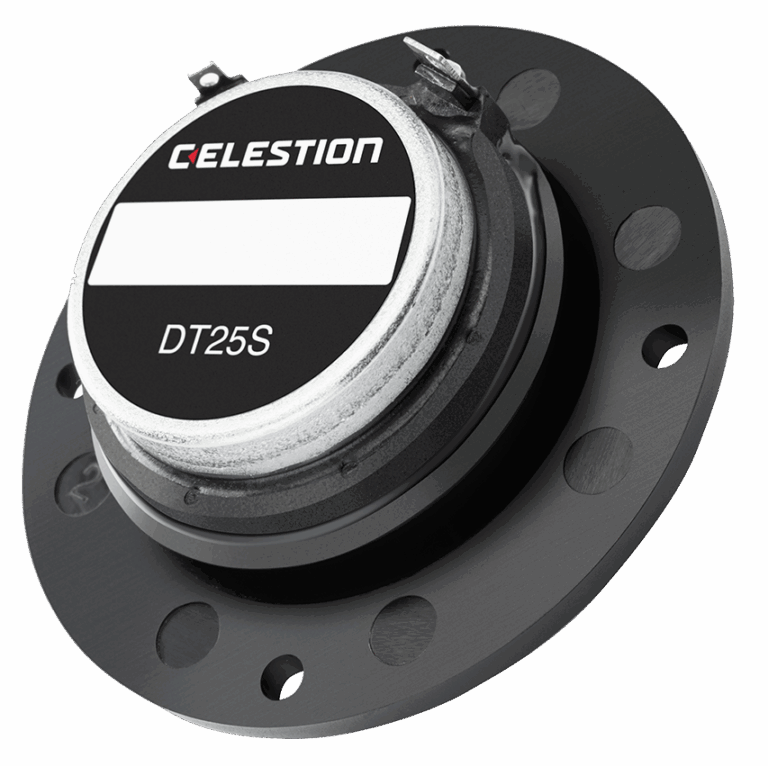

DT25S
1-inch diameter neodymium magnet tweeter
- Very compact, low weight, high sensitivity tweeter
- 2,200Hz recommended min. crossover freq (12dB/oct)
- Single piece silk diaphragm and surround
Specifications
20W
Continuous power rating
94dB
Sensitivity
1in
Voice coil diameter
Power rating
10W
Continuous power rating
20W
Rated impedance
8Ω
Sensitivity
94dB
Frequency range
1,700-20,000Hz
Recommended min. crossover (12dB/oct)
2,200Hz
Magnet type
Neodymium
Voice coil diameter
25mm / 1in
Voice coil material
Copper clad aluminium
Diaphragm material
Silk
Mounting Information
Width
65mm / 2.6in
Depth
24.5mm / 0.96in
Fitting
Bolt (4x 4mm/0.16in holes on 56.5mm/2.2in PCD)
Throat exit
25mm / 1in
Unit weight
88g / 23oz
Packed Dimensions & Weight
Single pack size W x D x H
88mm x 88mm x 60mm / 3.46in x 3.46in x 2.36in
Single pack weight
137g / 4.83oz

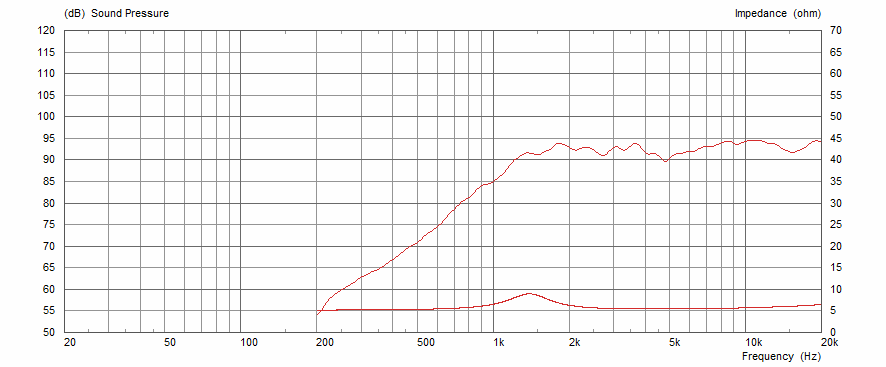

Frequency Response and Impedance
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment.
